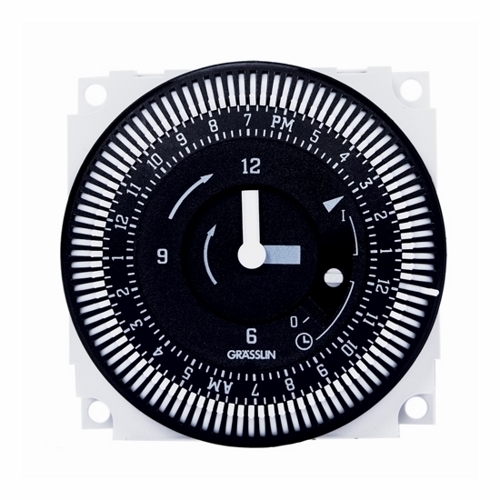

Product image for INT-MAT FM1STUZH-240U 24HR TIMER M
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

INT-MAT FM1STUZH-240U 24HR TIMER M

Manufacturer: Intermatic | Catalog # FM1STUZH-240U | QED Part # 4226650
$123.64 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
The FM1 Series Timer Modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.

Technical Information

Action
SPDT
Applications
HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications
Connection Type
1/4 In Quick Connect
Contact Configuration
1 NO/1 NC
Contact Rating
21 AMP @ 120 - 250 VAC
Frequency
50/60 Hz
Max Operating Temperature
185 degrees F
Min Operating Temperature
-40 degrees F
Mounting Type
Panel Mount
Number of Poles
1 Pole
Operating Temperature
185 degrees F
Power Consumption
1 VA
Size
2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Standard
CCSAus Certified LR3730,CE Certified,CULus Recognized #10694,HVACR
Tc Connection
1/4 IN Quick Connect
Type
Synchronous Electromechanical
Voltage
240 VAC
Wattage
1350 Watt

Manufacturer Information

Brand
Intermatic
Sub Brand
Grasslin

General Product Info

12-Digit UPC
614573121057
Product UPC
61457312105

Dimensions

Depth
1-1/4 Inch
Height
2-23/64 Inch
Warranty Length
1 yr
Width
2 23/64 in
Applications
  • Lighting Panel Control
  • Commercial Refrigeration
  • Pool & Spa
  • Aerobic Waste Water Systems
  • Ventilation
  • Hot Water Pump Circulation
  • Hydroponic Systems
  • Landscape Lighting
  • Bug and Pest Control Systems
Features
  • Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
  • Clear plastic cover (DC-FME-A), sold separately below
  • True clock face, easy-to-set
  • Standalone or with indoor/outdoor enclosure, sold separately below
  • Compact size
  • Synchronous drive or quartz drive Q models with self-recharging battery backup
  • 21 A SPDT Switch
  • 7-Day carry-over battery backup on Q models
  • Available with or without override
  • Noise immune ideal for robust applications
