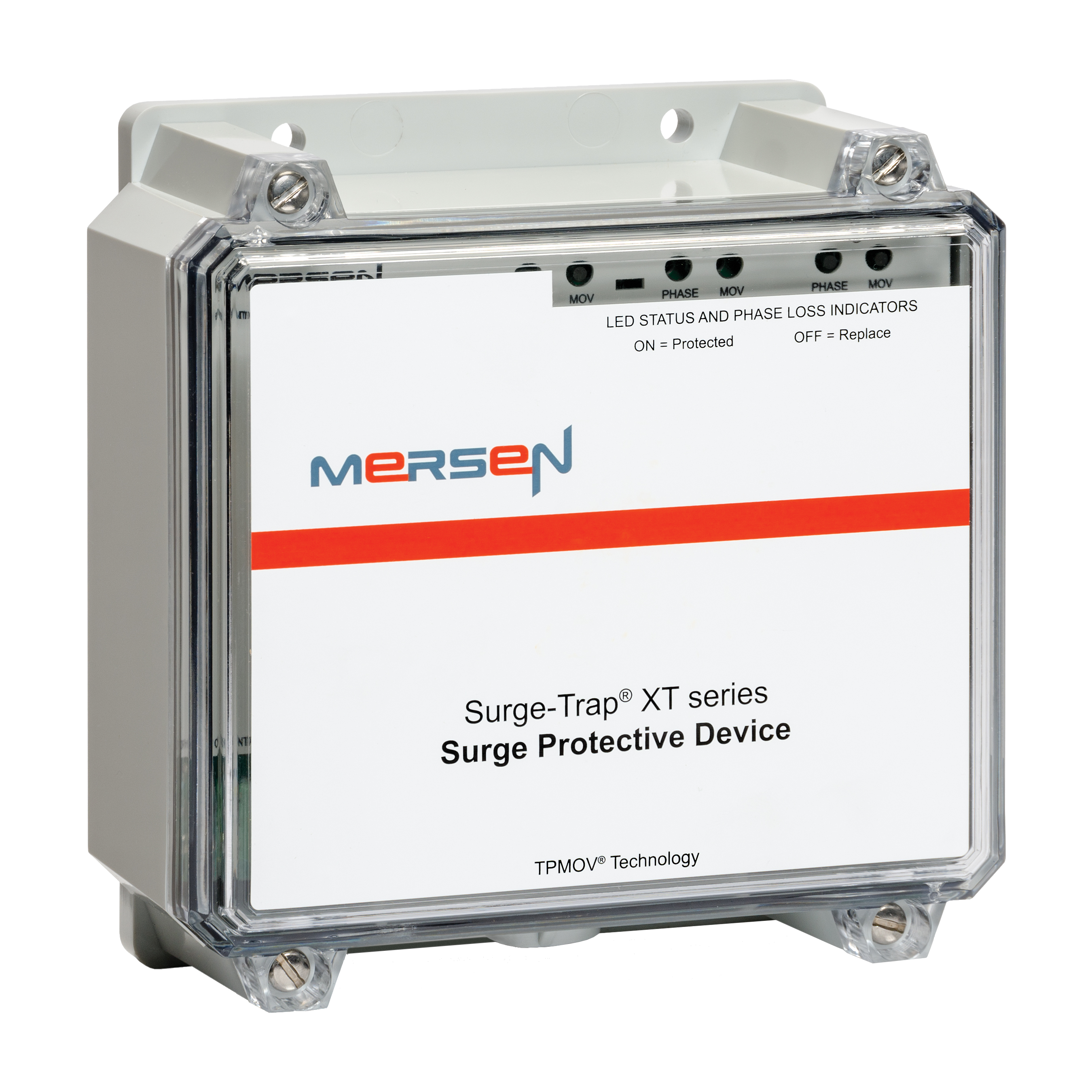

Product image for Mersen STXT480D20 XT T1 200kA 480V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Mersen STXT480D20 XT T1 200kA 480V

Manufacturer: Mersen | Catalog # STXT480D20 | QED Part # 4223548
$1,215.74 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
The most advanced of the STX series, the Surge-Trap® Type 1 STXT Series comes standard with EMI/RFI Filtering and surge capacities up to 200kA. The STXT features TPMOV® technology inside, making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel.

Technical Information

Applications
Suitable for any Type 1 or 2 SPD application
Connection Type
Box
Current Type
AC
Frequency
50/60 Hz
Indicator
LED
Max Discharge Current
200 kA
Max Operating Temperature
85 degrees C
Min Operating Temperature
-40 degrees C
Mounting Type
Panel Mount,Wall Mount
Nominal Discharge Current
10 kA
Short Circuit Current Ratng
200000 A
Tc Connection
Box
Terminal Type
Box
Voltage
480 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Mersen

General Product Info

12-Digit UPC
782001471019
Housing Material
Polycarbonate
Product UPC
78200147101
Weight
4.1 lb

Dimensions

Height
3.68 Inch
Length
7.4 Inch
Width
7.08 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Premium 200kA surge capacity for longer life and higher single impulse withstand
  • Includes EMI/RFI filter for cleaner attenuation
  • Mounting hub and mounting feet for installation flexibility
  • Optional audible alarm and remote dry contacts
  • Up to 10 Modes of Protection (L-N, L-L, L-G, N-G)
  • 10-year warranty
Certifications
  • ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
  • CSA C22.2, Type 1 SPD
  • ANSI/IEEE C62.41.1, C62.41.2, C62.45
  • UL96A Lightning Protection
  • RoHS Compliant
