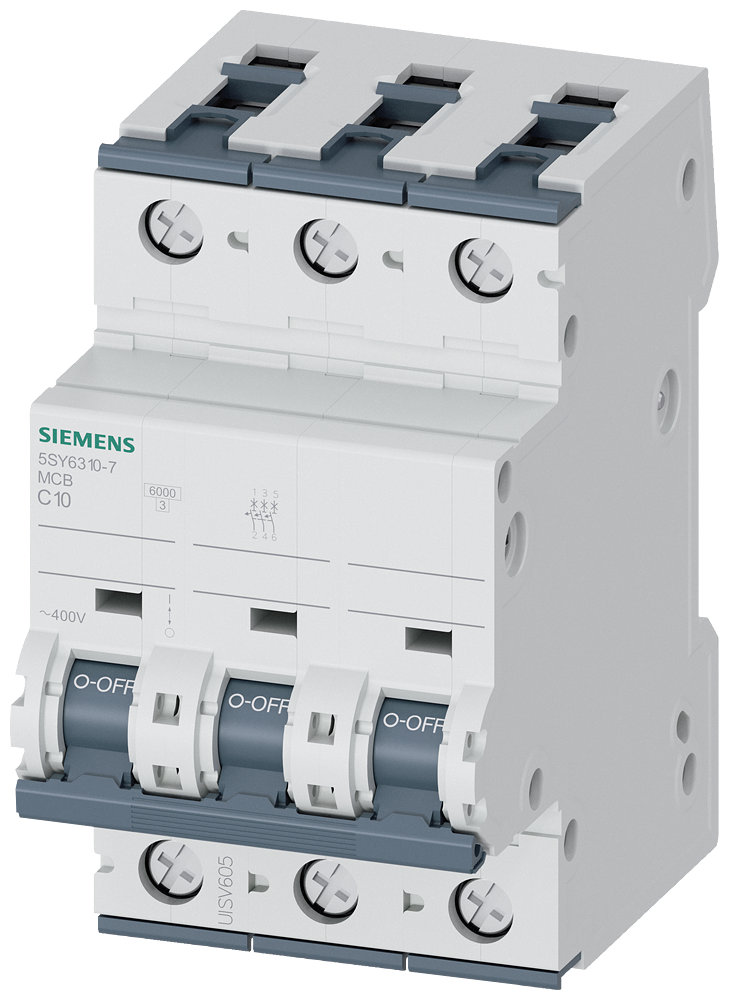

Product image for Siemens 5SY6310-7 3-Pole 10 Amp 400 VAC 6 kA Curve C Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens 5SY6310-7 3-Pole 10 Amp 400 VAC 6 kA Curve C Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY6310-7 | QED Part # 4213283
$167.24 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,3P,10A,CURVE C 6KA, 3POLE, C, 10A, D=70MM MINIAT. CIRCUIT-BREAKER 4

Technical Information

Amperage
10 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
10 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
3 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
EN 60 898,IEC,UL 1077,CE,CSA 22.2 NO. 235,EN 60 947-2
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554902289
Class
C
Product UPC
75455490228
Weight
0.965 lb

Dimensions

Height
2.95 Inch
Length
3-1/2 Inch
Width
2.200 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.04 kg
Green End-of-Life CO2
0.489 kg
Green Manufacturing CO2
1.51 kg
Green Total CO2
23.358 kg
Green Transport-to-DC CO2
0.356 kg
Green Use-Phase CO2
20.963 kg
