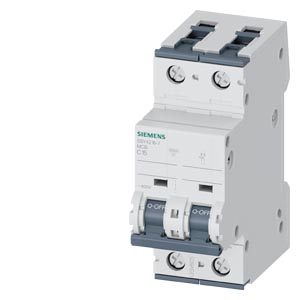

Product image for Siemens 5SY4218-7 15 Amp C Curve 2-Pole Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens 5SY4218-7 15 Amp C Curve 2-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4218-7 | QED Part # 4212917
$130.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Type 5SY4 Miniature Circuit Breaker, 2 Poles, 480/277V, 15A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
15 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
15 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
EN 60 898,CSA 22.2 NO. 235,IEC,EN 60 947-2,UL 1077,CE
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
IEC DIN mount Miniature Breakers & Fuses

General Product Info

12-Digit UPC
754554889467
Class
C
Product UPC
75455488946
Weight
0.575 lb

Dimensions

Height
3-1/4 Inch
Length
3-3/4 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.028 kg
Green End-of-Life CO2
0.328 kg
Green Manufacturing CO2
1.13 kg
Green Total CO2
20.604 kg
Green Transport-to-DC CO2
0.06 kg
Green Use-Phase CO2
19.058 kg
