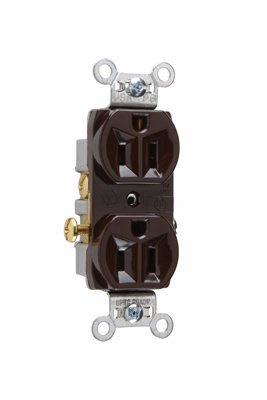

Product image for Pass & Seymour CR15 Commercial Spec Grade Duplex Receptacle, Side Wire, 15A 125V - Brown
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour CR15 Commercial Spec Grade Duplex Receptacle, Side Wire, 15A 125V - Brown

Manufacturer: Legrand Pass & Seymour | Catalog # CR15 | QED Part # 4211415
$3.15 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Commercial Spec Grade Duplex Receptacle, Side Wire 15amp 125volt, Gray

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
1500 V
Grade
Commercial
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-15R
NEMA Rating
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
1.322 L x .780 W x 3.281 H In
Tc Connection
Side wire
Temperature Rating
-40 to 50 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007119022
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
78500711902
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Certifications
  • cULus Listed
