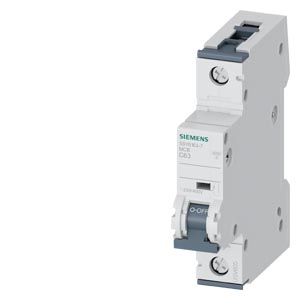

Siemens 5SY6163-7 SUP PTOR 5SY6 1P 240V

Manufacturer: Siemens | Catalog # 5SY6163-7 | QED Part # 4211018
$87.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
UL1077 SUP. PROT,6KA,1P,63A,C-TRIP MINIAT. CIRCUIT-BREAKER 2 400V 6KA,1POLE, C, 63A, D=70MM

Technical Information

Amperage
63 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
1 Pole
Short Circuit Current
5 kA
Standard
EN 60947-2,EN 60898-1,UL 1077,CSA C22.2 No. 235,IEC
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554931142
Class
C
Product UPC
75455493114
Weight
0.361 lb

Dimensions

Height
3.27 Inch
Length
3.661 Inch
Width
0.827 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.017 kg
Green End-of-Life CO2
0.176 kg
Green Manufacturing CO2
0.742 kg
Green Total CO2
39.178 kg
Green Transport-to-DC CO2
0.128 kg
Green Use-Phase CO2
38.115 kg
