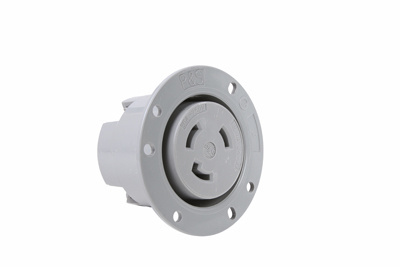

Product image for Pass & Seymour L630-FO 30 Amp 250 VAC 2-Pole 3-Wire NEMA L6-30R Gray Thermoplastic Locking Flanged Receptacle Outlet
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour L630-FO 30 Amp 250 VAC 2-Pole 3-Wire NEMA L6-30R Gray Thermoplastic Locking Flanged Receptacle Outlet

Manufacturer: Legrand Pass & Seymour | Catalog # L630-FO | QED Part # 4210512
$102.77 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
Turnlok® Flanged Outlet 3-Wire 30A 250V

Technical Information

Amperage
30 Amp
Applications
Commercial Applications
Conductor Size
18-10 AWG
Material
Thermoplastic
NEMA
L6-30R
NEMA Rating
L6-30R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.1"
Type
Flanged Outlet
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007263039
Color
Gray
Product UPC
78500726303
UNSPSC
39121403

Dimensions

Depth
1.765 Inch
Diameter
3.12 Inch
Width
3.12 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Interior components constructed of high-grade brass material for physical and electrical integrity.
  • High-impact thermoplastic housing withstands on-the-job abuse.
  • Ratings and NEMA configurations are clearly visible on flange face, for fast I.D. while in use.
Certifications
  • CSA Listed
  • UL Listed
