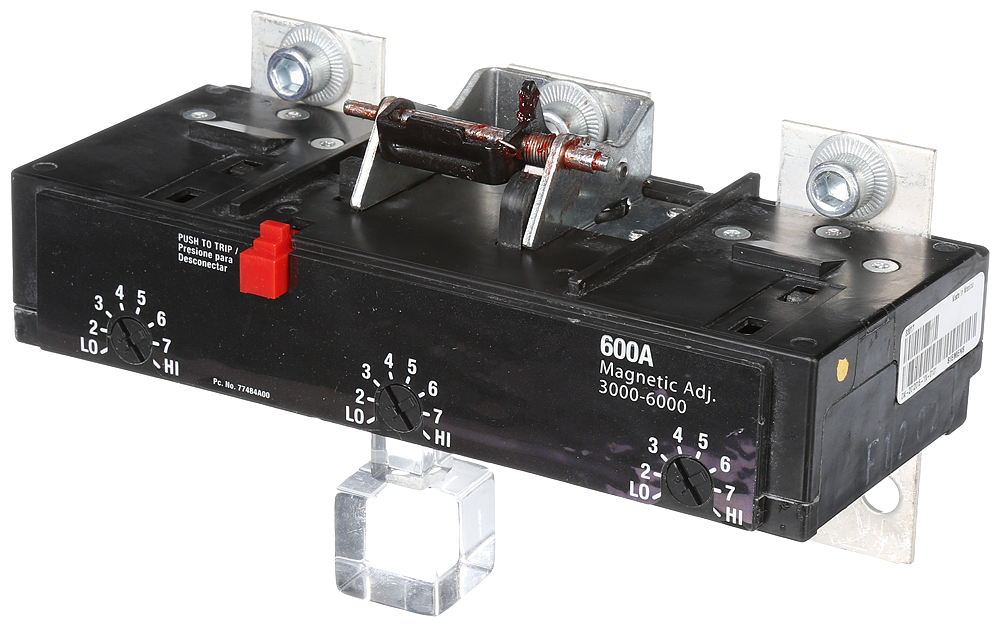

Siemens LD63T600 3-Pole 600 Amp 600 Volt 25 kA Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # LD63T600 | QED Part # 4208912
$742.71 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Type LD Molded Case Circuit Breaker, 25kA @ 600V, 3 Poles, 600A, Interchangeable, 40°C Trip Unit Only, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Amperage
600 Amp
Applications
For 40C Trip Unit Only
Current
600 Amp
Enclosure
Varying
Frame
LD
Frequency
50/60 Hz
Interrupt Rating
25 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
UL,HACR
Tc Connection
N/A
Temperature Rating
40 degrees C
Trip Range
3000 - 6000 A
Trip Type
Thermal Magnetic
Type
LD6
Voltage
500 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643214149
Product UPC
78364321414
Weight
2.100 lb

Dimensions

Height
5.7 Inch
Length
5.4 Inch
Width
8.800 in

Certifications and Compliance

Country of Origin
Mexico
