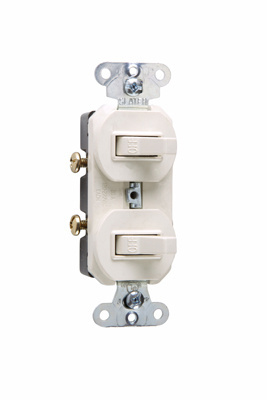

PAS 670LAG COMBO 2 SWITCHES 1P 20A

Manufacturer: Legrand Pass & Seymour | Catalog # 670LAG | QED Part # 4206706
$9,362.25 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Installation / Instruction Manual
Single-Pole, Double Combination Switch, 20A, 120/277V, White.

Technical Information

Action
SP
Actuator
Toggle Switch
Amperage
20 Amp
Applications
Hospitality,Residential
Connection Type
Side Wire
Contact Configuration
N-O
Contact Rating
120 V
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
2
Operating Cycles
30000
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Size
1.32 L x 0.94 W x 4.06 H In
Switch Type
Toggle
Tc Connection
Side wire
Type
Combination
Voltage
120/277 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007006032
Color
Almond
Finish
Satin
Product UPC
78500700603

Dimensions

Depth
0.94 Inch
Height
4.06 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
