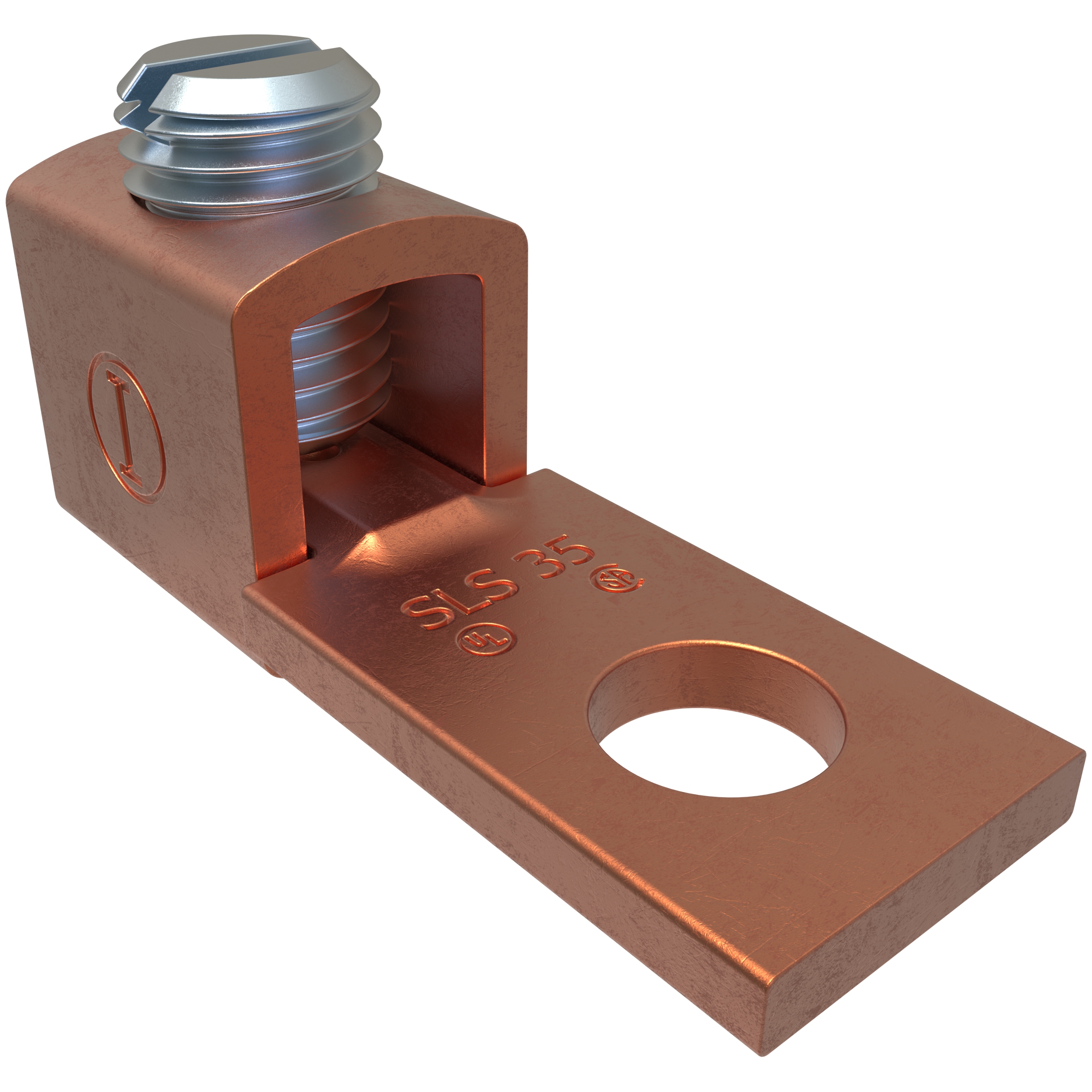

Product image for Ilsco SLS-35 Copper Mechanical Lug Straight, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco SLS-35 Copper Mechanical Lug Straight, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # SLS-35 | QED Part # 4206055
$4.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size #10 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 6 Str - 14 Str and 10 Sol - 14 Sol, 1, 2 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
Mechanical Lug, One Conductor
Conductor Material
Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.203 in
Number of Conductors
1,2
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
SLU:OFFSET LUG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669821109
Color
Copper
Product UPC
78366982110
Weight
0.029 lb

Dimensions

Height
0.65 Inch
Length
1.141 Inch
Width
0.375 in

Certifications and Compliance

Country of Origin
India
