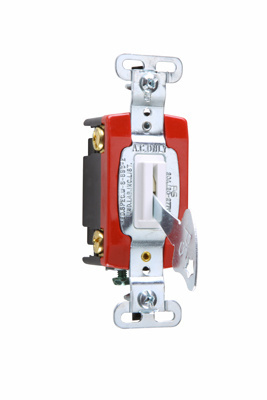

Pass & Seymour PS20AC4-WL 4way Lock Switch, Back & Side Wire, 20A 120/277V - White

Manufacturer: Legrand Pass & Seymour | Catalog # PS20AC4-WL | QED Part # 4205973
$132.53 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure
4way Lock Switch, Back & Side Wire, 20amp 120/277volt, Light Almond

Technical Information

Amperage
20 Amp
Applications
Commercial,Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Specification
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
4 Pole
Number of Switches
1
Size
3.3"
Switch Type
Toggle
Type
Switch
Voltage
120 Volt
Wattage
4 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007266788
Color
White
Finish
Matte
Product UPC
78500726678
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CSA,FEDSPEC,UL
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
  • UL Listed
  • CSA Listed
