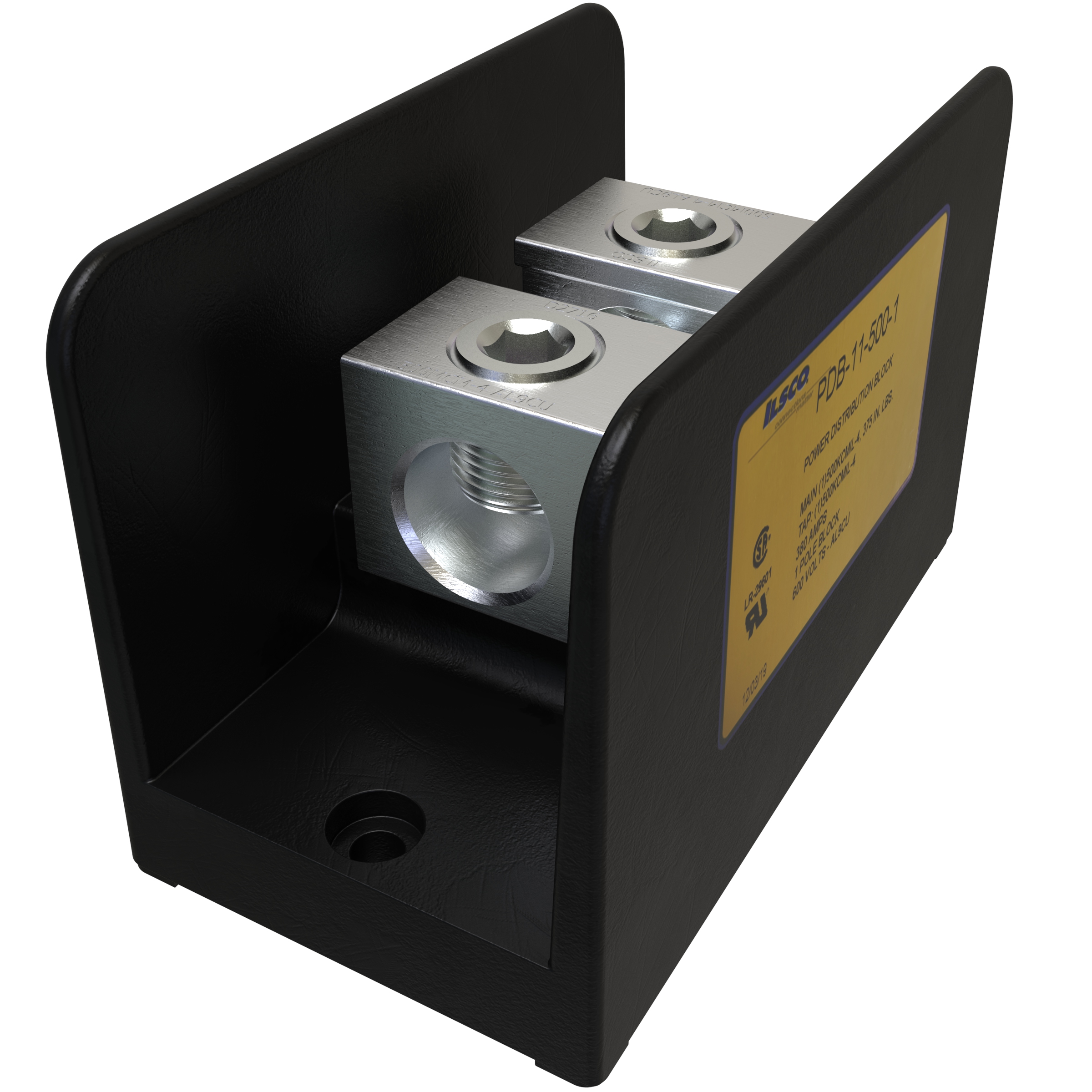

Product image for Ilsco PDB-11-500-1 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 500-4, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, 1 Pole, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco PDB-11-500-1 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 500-4, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, 1 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-11-500-1 | QED Part # 4193207
$183.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 500 kcmil - 4 Str, 2 conductors, 2 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Black, 1 poles, 1 ports per pole primary, 1 ports per pole secondary,

Technical Information

Amperage
CU:380 AMP
Applications
Power Distribution Block
Enclosure
Valox
Material
Aluminum
Number of Conductors
2
Number of Poles
1 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669710854
Color
Black
Finish
Tin Plated
Product UPC
78366971085
