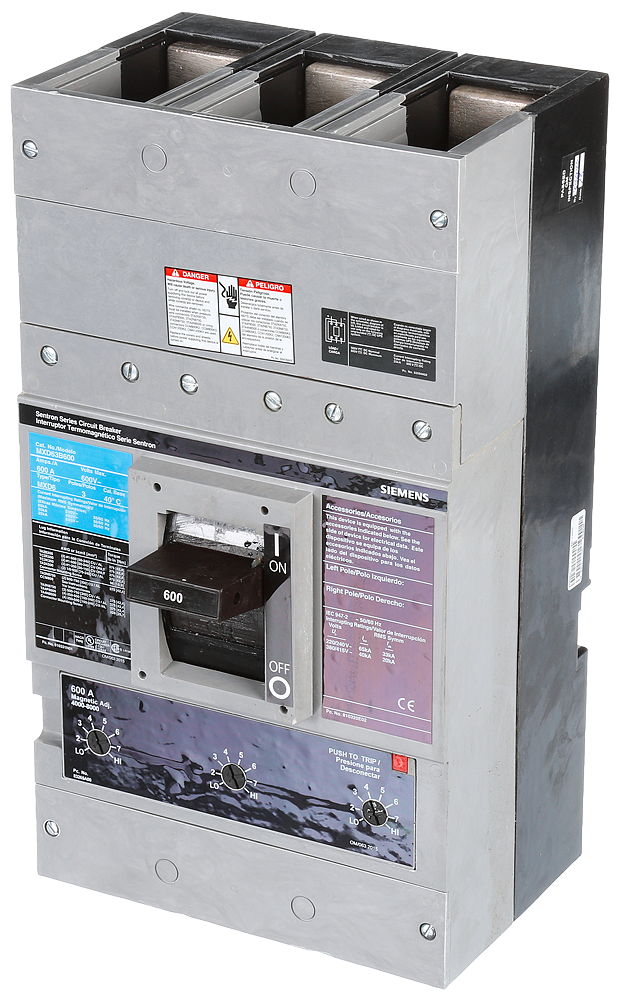

Product image for Siemens MXD63B600 BRKR MD6 3P 600V 600A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens MXD63B600 BRKR MD6 3P 600V 600A

Manufacturer: Siemens | Catalog # MXD63B600 | QED Part # 4181574
$30,606.83 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER MD FRAME WITH STANDARD BREAKING CAPACITY. 600A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 9.00 x 16.0 x 6.00.

Technical Information

Actuator
Varying
Amperage
600 Amp
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
MD
Frequency
50/60 Hz
Interrupt Rating
25 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40degrees C
Standard
HACR
Tc Connection
N/A
Trip Range
3000-6000
Trip Type
Thermal Magnetic
Type
MXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643252424
Product UPC
78364325242
Weight
53.700 lb

Dimensions

Height
19 Inch
Length
19 Inch
Width
12 in

Certifications and Compliance

Country of Origin
Mexico
