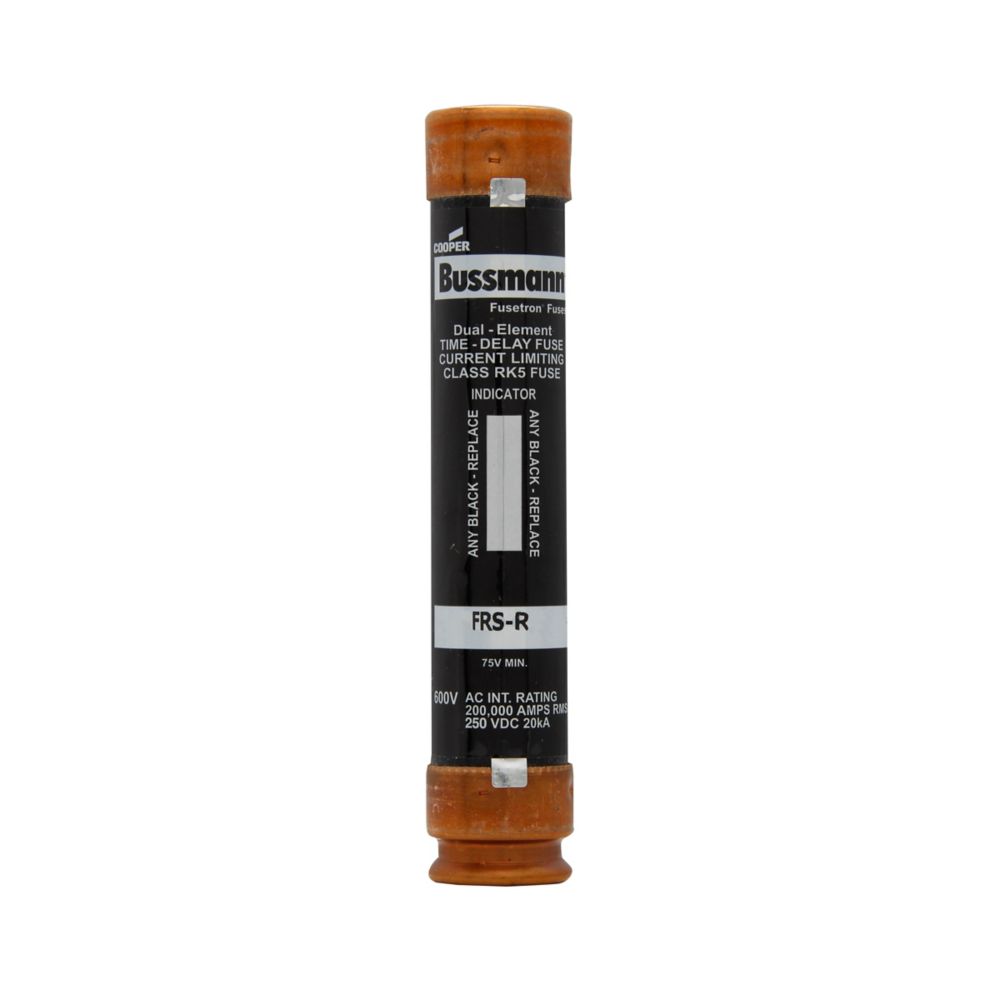

Product image for Bussmann FRS-R-60ID 60amp Fusetron™ Dual-Element Time-Delay Fuse, Class RK5, 600Vac/300Vdc, w/ Indication
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Bussmann FRS-R-60ID 60amp Fusetron™ Dual-Element Time-Delay Fuse, Class RK5, 600Vac/300Vdc, w/ Indication

Manufacturer: Eaton Bussmann | Catalog # FRS-R-60ID | QED Part # 4167844
$49.64 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 60 A, indicating fuse, interrupting rating of 200 kA at 600 Vac

Technical Information

Amperage
60 Amp
Applications
Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Connection Type
Ferrule
Element
Dual
End Type
Ferrule
Interrupt Rating
20 kAIC
Response Time
10 seconds at 500%
Size
1.06 In Diameter X 5.50 In Length
Standard
CE,CSA C22.2,UL 248-12
Tc Connection
Ferrule end x ferrule end
Type
Current Limiting,Time Delay
Voltage
300 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Fusetron

General Product Info

12-Digit UPC
051712204668
Class
RK5
Product UPC
05171220466
Weight
.15 lb

Dimensions

Diameter
1.06 Inch
Height
0.81 Inch
Length
5 Inch
Width
1 in
