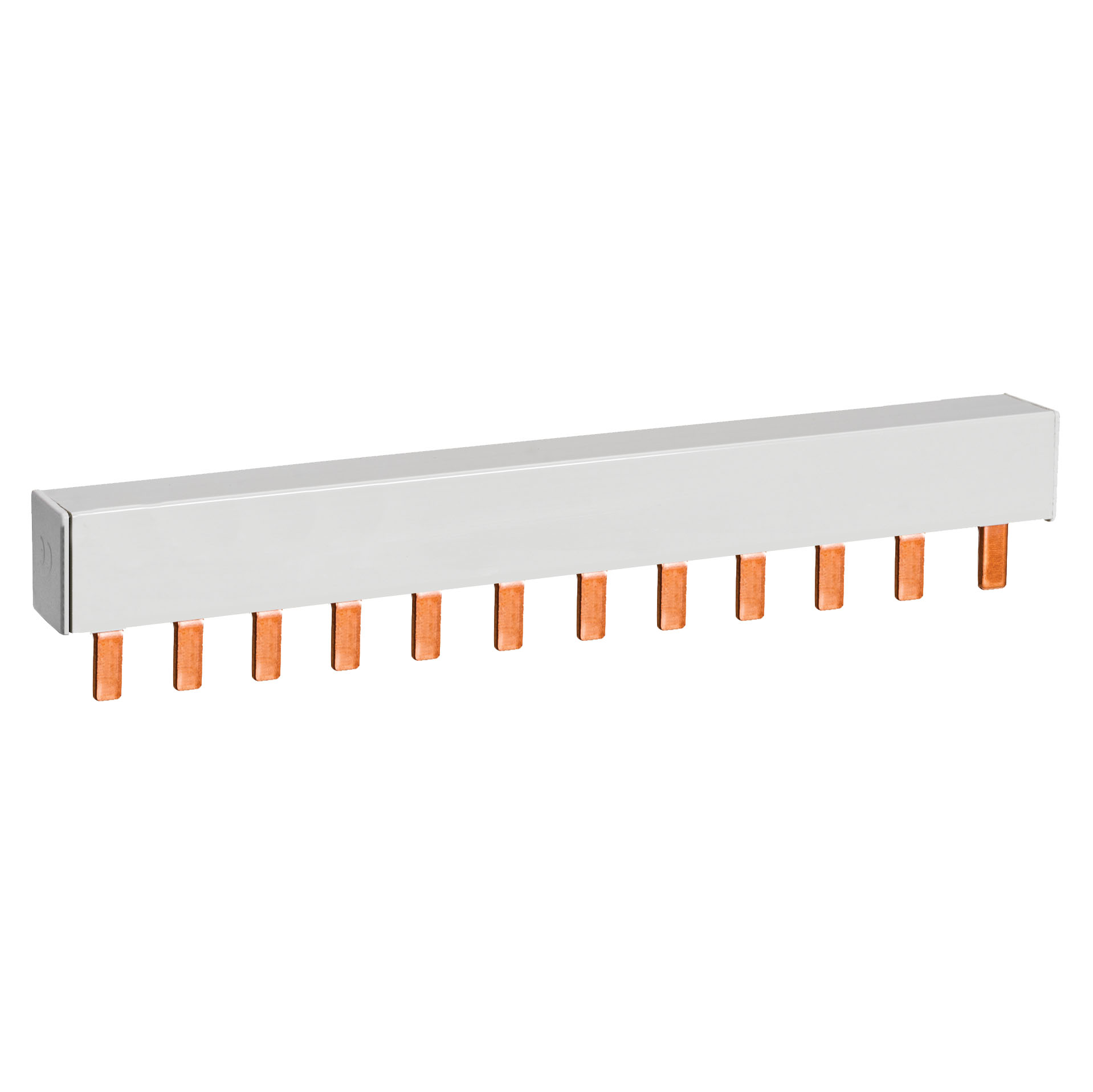

Mersen USBB3PH25K12 12P 3PH 600V BU

Manufacturer: Mersen | Catalog # USBB3PH25K12 | QED Part # 4158018
$115.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Mersen USBB UltraSafe bus bar systems are intended for use with UltraSafe Class CC (USCC) and Midget (USM) fuse holders. The USBB delivers safe and reliable combination of circuits in a compact design. Bus bar systems reduce installation time when compared to wire solutions, offer space savings and deliver touch-safe, shock resistant solutions to panel builders and designers. 1-, 2-, and 3-phase designs available.

Technical Information

Amperage
100-200 Amp
Applications
Applications where Mersen USM/USCC fuseholders are in use UL 508 panels Solar string combiner boxes Control panels Power distribution panels
Contact Material
Brass,Copper
Number of Poles
10,12,15,4,6,8,9
Tc Connection
Comb Bus Bar
Type
UltraSafe Accessories
Voltage
600 Volt

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001449285
Product UPC
78200144928
Weight
0.432 lb

Dimensions

Height
1.38 Inch
Length
16.43 Inch
Width
0.85 in

Certifications and Compliance

Country of Origin
Germany
Features
  • Cuttable design offers flexibility
  • Environmentally conscious, RoHS compliant and lead free
  • Save panel space with compact design and footprint
  • Reduce shock hazards with touchsafe cover (included)
  • Decrease installation time compared to wire solutions
