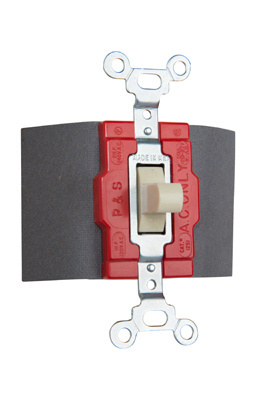

Pass & Seymour 1251-I Manual Control Switch, Single Pole / Double Throw, 20A 120/277V, Momentary Contact - Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # 1251I | QED Part # 414671
$62.89 /ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet
Single Pole, Double Throw Manual Control Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Action
Single pole
Actuator
Toggle switch
Amperage
20 Amp
Applications
Commercial,Industrial
Contact Rating
20Amp, 120/277Vac
Enclosure
Steel
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Size
3.3 in
Switch Type
Toggle
Type
Manual Controller
Voltage
120/277 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007125115
Color
Ivory
Finish
Matte
Product UPC
78500712511

Dimensions

Depth
1.469 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.5 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
Features
  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw and Double Pole-Double Throw.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
