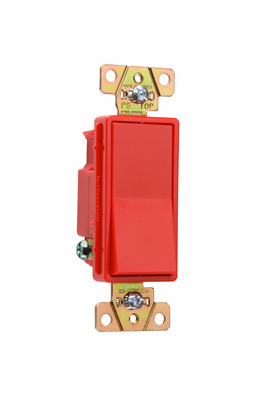

Product image for Pass & Seymour 2621-RED Single Pole, Back and Side Wire, Decorator Switch, 20 amps, 120/277V -Red.
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour 2621-RED Single Pole, Back and Side Wire, Decorator Switch, 20 amps, 120/277V -Red.

Manufacturer: Legrand Pass & Seymour | Catalog # 2621RED | QED Part # 4134842
$7.50 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Brochure
Single Pole, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Actuator
Paddle
Amperage
20 Amp
Applications
Industrial
Contact Rating
20 A, 120/277 VAC
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
140 degrees F
Power Rating
1 W
Size
4.25"
Switch Type
Paddle
Type
Decorator,Switch
Voltage
120/277 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007539349
Color
Red
Finish
Matte
Product UPC
78500753934

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Warranty Length
1 yr
Width
1.3 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
