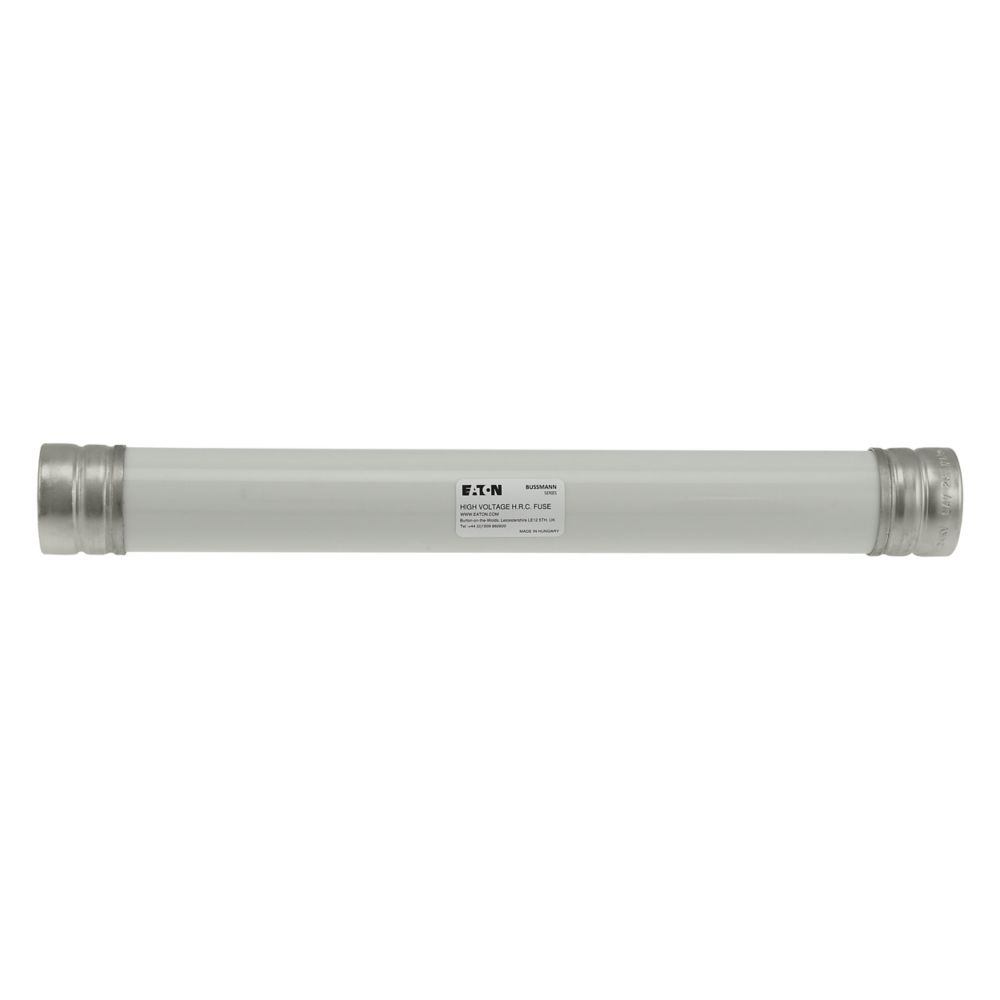

Product image for BUSS 24CAV2 24KV 2A 13"FUSE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
To:
CC:

BUSS 24CAV2 24KV 2A 13"FUSE

Manufacturer: Eaton Bussmann | Catalog # 24CAV2 | QED Part # 4131304
$1,727.37 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Eaton Bussmann series medium auxiliary fuse, VT fuse-link, medium voltage, 2 A, AC 24 kV, 340 x 41.3 mm, back-up, IEC, Protection of auxiliary transformers, 2 A, 40K A Breaking Cap, Inst Air, Back-up, IEC, AC, Class back-up, Bolt-on

Technical Information

Amperage
2 Amp
Applications
Utility - Substations, Utility Transmission and DistributionUtility
Barrel Type
Single
Connection Type
Ferrule End X Ferrule End
Fuse Class
Class back-up
Indicator
Non Indicating
Interrupt Rating
40 kAIC
Tc Connection
Ferrule end x ferrule end
Type
Non-indicating,PT
Voltage
24 kV

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712832915
Class
Class back-up
Product UPC
05171283291
Weight
2.225 lb

Dimensions

Diameter
2 Inch
Height
15-3/4 Inch
Length
2 Inch
Width
2 in
Product Compliance
  • Contact factory
