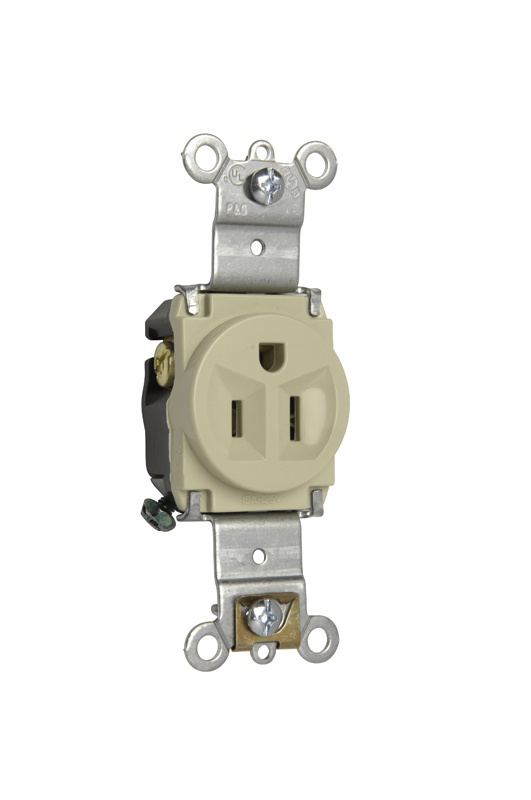

Product image for Pass & Seymour 5261-I Single Receptacle, HD Spec Grade, 15A 125V Back & Side Wired - Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour 5261-I Single Receptacle, HD Spec Grade, 15A 125V Back & Side Wired - Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # 5261I | QED Part # 412185
$30.44 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 15amp 125volt Light Almond

Technical Information

Amperage
15 Amp
Applications
Commercial Applications
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Federal Specification
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Box
NEMA
5-15R
NEMA Rating
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
1.32 in L x 1.093 in W x 3.68 in H
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy-Duty, Spec-Grade Single Receptacle
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007526110
Color
Ivory
Product UPC
78500752611
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Certifications
  • cUL Listed
  • Federal Spec Listed
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
