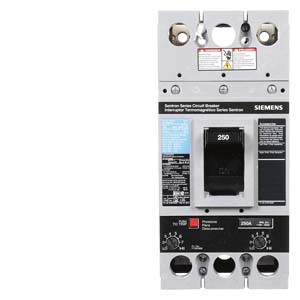

Siemens FXD62B250 2-Pole 600 VAC 250 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # FXD62B250 | QED Part # 4117245
$1,904.37 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Type FD Breaker,22kA@600V,2P,250A,Non-interchangeable,STD 40°C,Thermal Magnetic,Standard IC Rating

Technical Information

Actuator
Varying
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
2 Pole
Operating Temperature
40 degrees C
Tc Connection
N/A
Trip Range
1100-2500
Trip Type
Thermal Magnetic
Type
FXD6, Standard
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211186
Product UPC
78364321118
Weight
7.400 lb

Dimensions

Height
11.2 Inch
Length
5.55 Inch
Width
11.250 in

Certifications and Compliance

Country of Origin
Mexico
