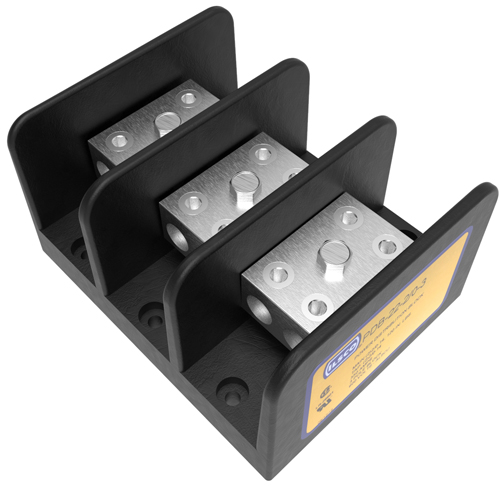

Image thumbnail 2

To:
CC:

Ilsco PDB-22-2/0-3 Power Distribution Block, Dual Rated, Line Conductor Range 2/0-14, Load Range 2/0-14, 2 Ports Per Pole Line Side, 2 Ports Per Pole Load Side, 3 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-22-2/0-3 | QED Part # 376716

$280.69 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 4 conductors, 12 ports/wireways, Drive Type Main 3/16 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Black, 3 poles, 2 ports per pole primary, 2 ports per pole secondary,

Technical Information

Amperage
CU:620 AMP
Applications
Power Distribution Block
Conductor Size
14-2/0 AWG
Enclosure
Valox
Material
Aluminum
Number of Conductors
4
Number of Poles
3 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Terminal Type
Screw
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669710953
Color
Black
Finish
Tin Plated
Product UPC
78366971095
