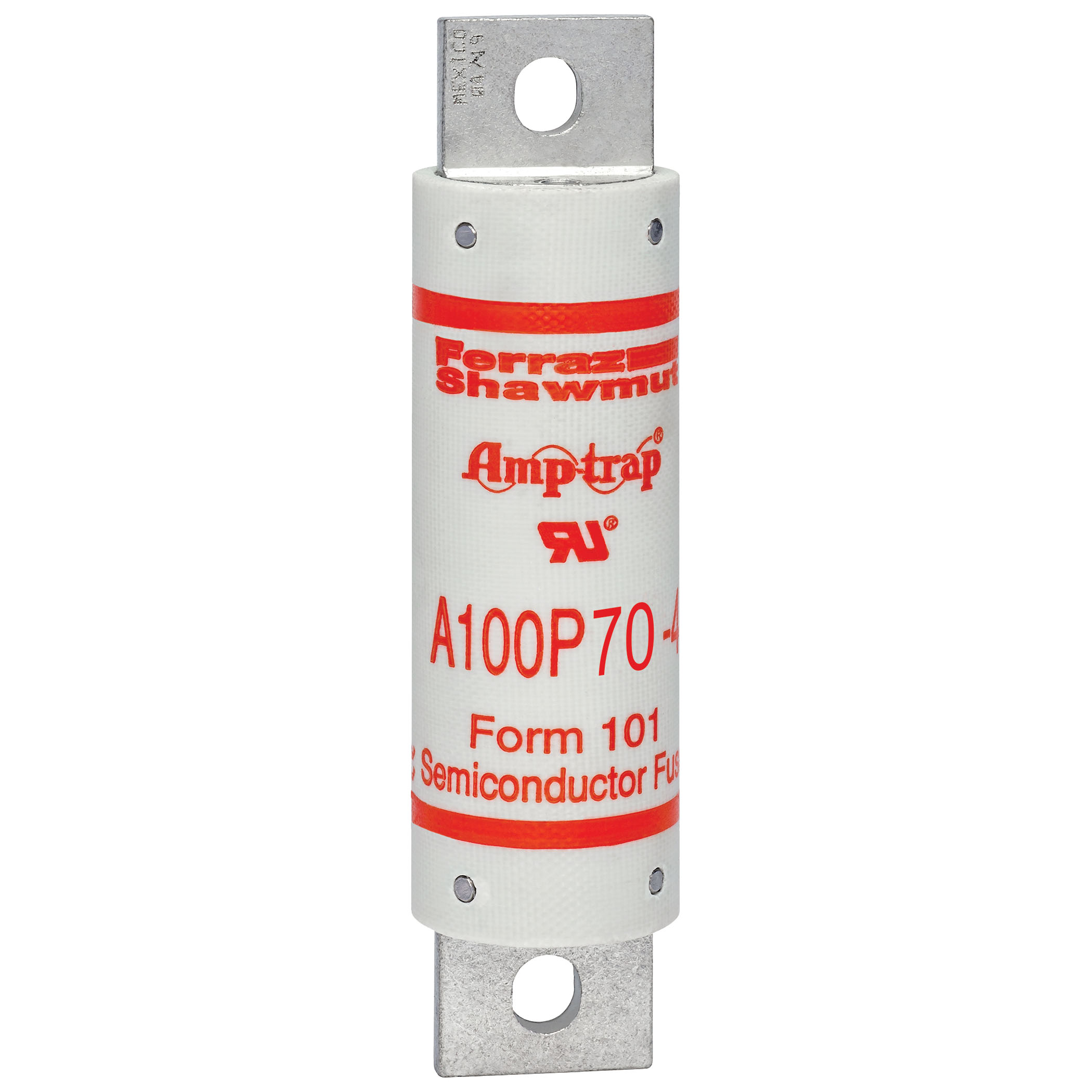

Mersen A100P70-4 1000V 70A SEMICOND

Manufacturer: Mersen | Catalog # A100P70-4 | QED Part # 3605730
$197.87 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.

Technical Information

Amperage
70 Amp
Applications
Protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices
Connection Type
Blade
Contact Material
Tin-Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kAIC
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
1000 V
Tc Connection
Bolted
Temperature Rating
80 degrees C
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
Semi Conductor
Voltage
1000 Volt

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001948368
Construction
GMG
Product UPC
78200194836
Weight
0.53 lb

Dimensions

Diameter
1.22 Inch
Length
5 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Wide range of ampere ratings
Certifications
  • UL recognized component File E60314
  • AC: UL guide no. JFHR2 (35-600A)
  • DC: self-certified
