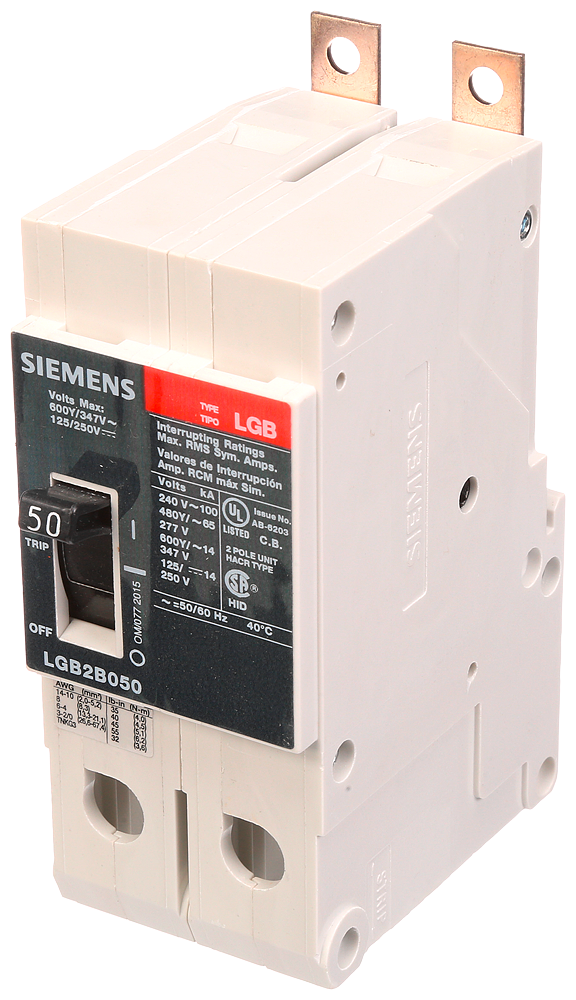

Product image for Siemens LGB2B050B BRKR LGB 50A 2P 480Y
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens LGB2B050B BRKR LGB 50A 2P 480Y

Manufacturer: Siemens | Catalog # LGB2B050B | QED Part # 3603717
$574.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 50A 2-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES: MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 2 x 5.4 x 2.8.

Technical Information

Amperage
50 Amp
Applications
INDUSTRIAL
Connection Type
Low Tab Panelboard Mount
Frame
125A
Frequency
50/60 Hz
Interrupt Rating
65 kAIC
Material
MOLDED CASE CIRCUIT BREAKER
Number of Poles
2 Pole
Operating Temperature
40DEGC
Standard
CSA-C22.2,UL 489
Tc Connection
LOW TAB PANELBOARD MOUNT
Trip Type
THERMAL MAGNETIC TRIP UNIT
Type
LGB
Voltage
480 Volt

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
887621220136
Product UPC
88762122013
Weight
1.785 lb

Dimensions

Height
5-1/2 Inch
Length
8.95 Inch
Width
6.000 in

Certifications and Compliance

Country of Origin
Mexico
