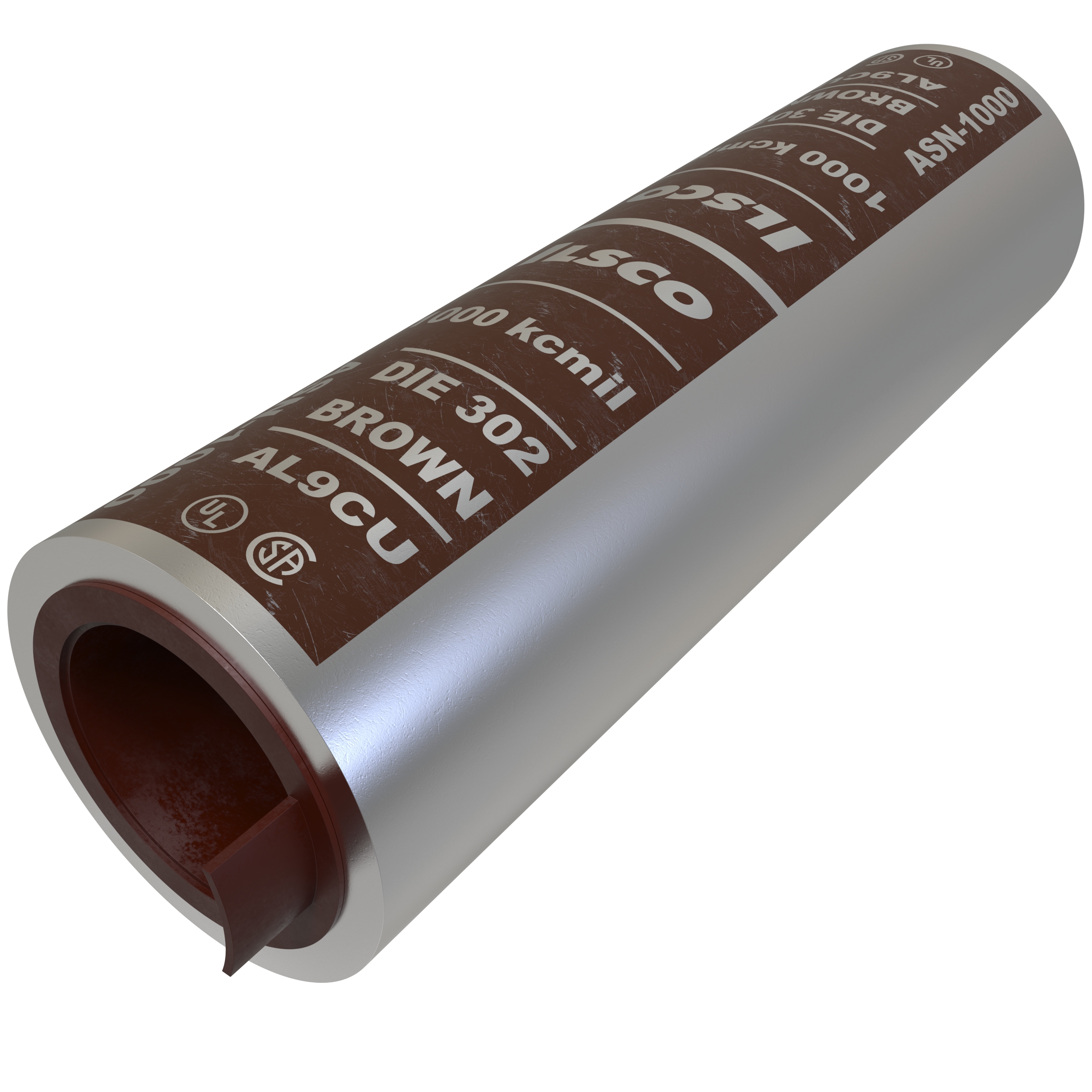

Ilsco ASN-1000 SureCrimp® Aluminum Compression Sleeve, Conductor Size 1000, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ASN-1000 | QED Part # 3565487
$167.71 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Aluminum Compression Sleeve, Compression connection, Dual Rated, Aluminum material, Tin plated connector, Standard Barrel, UL, CSA, Copper/Aluminum Primary Conductor 1000 kcmil, Contains De-Ox®, 1 conductors, Dimensions 5.992 in x 1.84 in x 1.84 in, rated for 35 kV, die color code Brown, primary color(s) Silver,

Technical Information

Applications
Aluminum Compression Sleeve
Barrel Type
Standard
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Material
Aluminum
Number of Conductors
1
Size
L:5.992;W:1.84;H:1.84 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
ASN:SLEEVE
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669184877
Color
Silver
Finish
Tin Plated
Product UPC
78366918487
Weight
0.896 lb

Dimensions

Height
1.84 Inch
Inside Diameter
1.18 in
Length
5.992 Inch
Outside Diameter
1.84 in
Width
1.84 in
