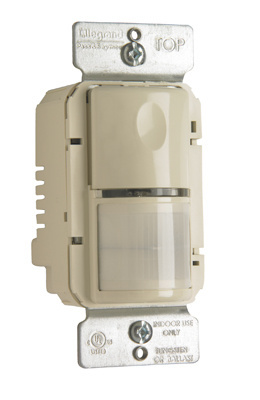

Product image for Pass & Seymour PTWSP250-LA Commercial Occupancy Sensor (PIR) PlugTail™ Automatic Wall Switch - Light Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Pass & Seymour PTWSP250-LA Commercial Occupancy Sensor (PIR) PlugTail™ Automatic Wall Switch - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # PTWSP250LA | QED Part # 3559663
$84.01 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Commercial Occupancy Sensor (PIR) PlugTail Automatic Wall Switch with 3 Wire Technology. Compact decorator design, shallow 1" back body, positive detection indicator with no minimum load requirement. Available in Ivory, White, Gray and Light Almond. For detailed PlugTail® information, visit our PlugTail Headquarters.

Technical Information

Applications
Commercial/Industrial
Indicator
LED
Mounting Type
Wall
Number of Wires
3 Wire
Operating Temperature
0degrees C to 55degrees C
Sensing Range
900 Sq Ft
Type
Occupancy
Voltage
120 Volt
Wattage
800/1200 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007017120
Color
White
Product Series
PlugTail
Product UPC
78500701712

Dimensions

Depth
1.55 Inch
Height
2.6 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
China
Features
  • Detection Signature Analysis provides high immunity to RFI and EMI.
  • Integrated light level sensor works from 10 to 150 footcandles.
  • Compatible with all electronic and magnetic ballasts, PL lamp balasts, compact fluorescent.
  • Adjustable time delay of 30 seconds to 30 minutes.
  • Dual 120/277VAC operation, Adjustable sensitivity from 20% to 100%, 180 degree coverage of up to 900 sq. ft.
  • Patented voltage drop protection and zero crossing circuitry.
  • No exposed terminals create a fingersafe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • LEED Contribution: Yes
