Pass & Seymour PS15AC1-CPL 1pole Pilot Lighted Switch, Back & Side Wire, 15A 120V - Clear | Quality Electrical Distribution (QED)

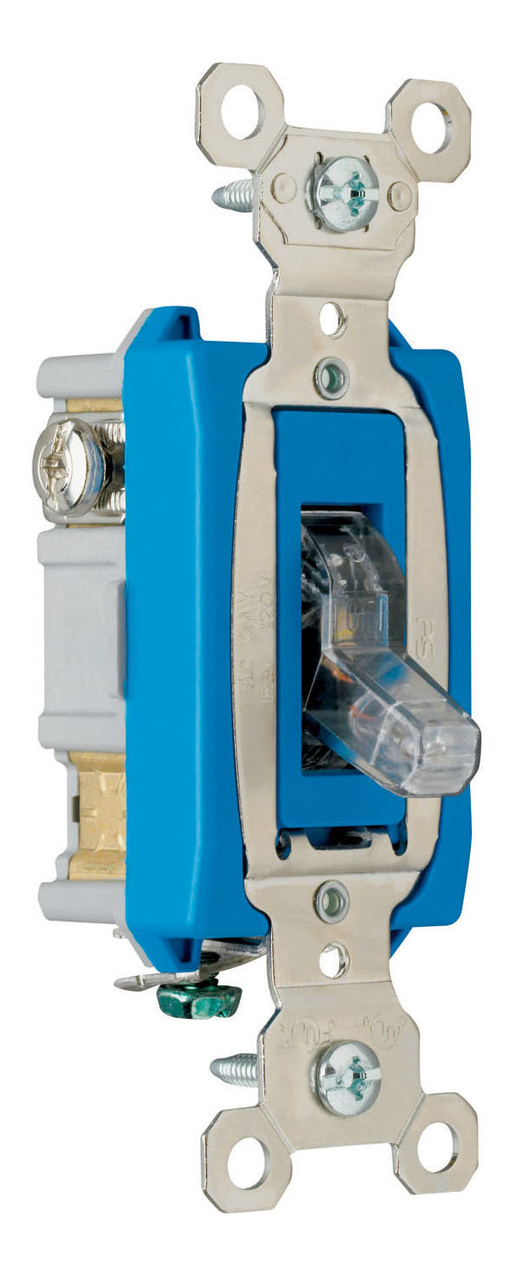

Product image for Pass & Seymour PS15AC1-CPL 1pole Pilot Lighted Switch, Back & Side Wire, 15A 120V - Clear
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pass & Seymour PS15AC1-CPL 1pole Pilot Lighted Switch, Back & Side Wire, 15A 120V - Clear

Manufacturer: Legrand Pass & Seymour | Catalog # PS15AC1CPL | QED Part # 3551465
$53.59 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Product Brochure Primary Spec Sheet
1pole Pilot Lighted Switch, Back & Side Wire, 15amp 120volt, Red

Technical Information

Action
Off
Actuator
Toggle
Amperage
15 Amp
Applications
Commercial,Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Commercial/Residential
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Size
3.3"
Switch Type
Toggle
Type
Switch
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195798
Color
Clear
Finish
Clear
Product UPC
78500719579
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • Impact- and chemical-resistant cover.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Auto-ground clip assures positive ground.
  • Cam control and spring actuator for positive ''makes and breaks.''
  • Heavy-duty bumpers for quiet, smooth operation.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Shallow design for easier installation.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
