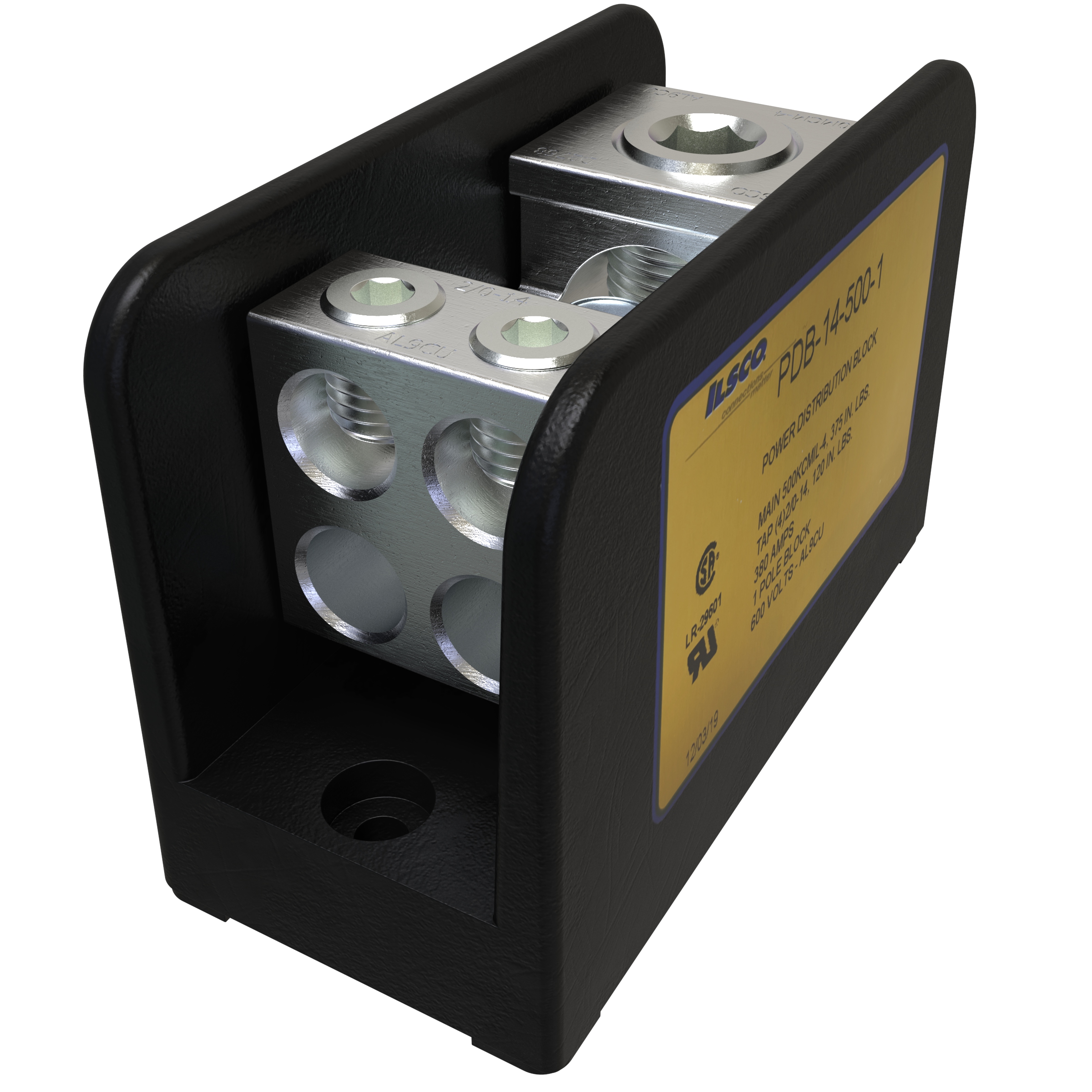

Ilsco PDB-14-500-1 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 2/0-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 1 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-14-500-1 | QED Part # 3538553
$202.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 2/0-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 1 Pole, UL, CSA

Technical Information

Amperage
CU:380 AMP
Applications
Power Distribution Block
Enclosure
Valox
Material
Aluminum
Number of Conductors
5
Number of Poles
1 Pole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669711103
Color
Black
Finish
Tin Plated
Product UPC
78366971110
