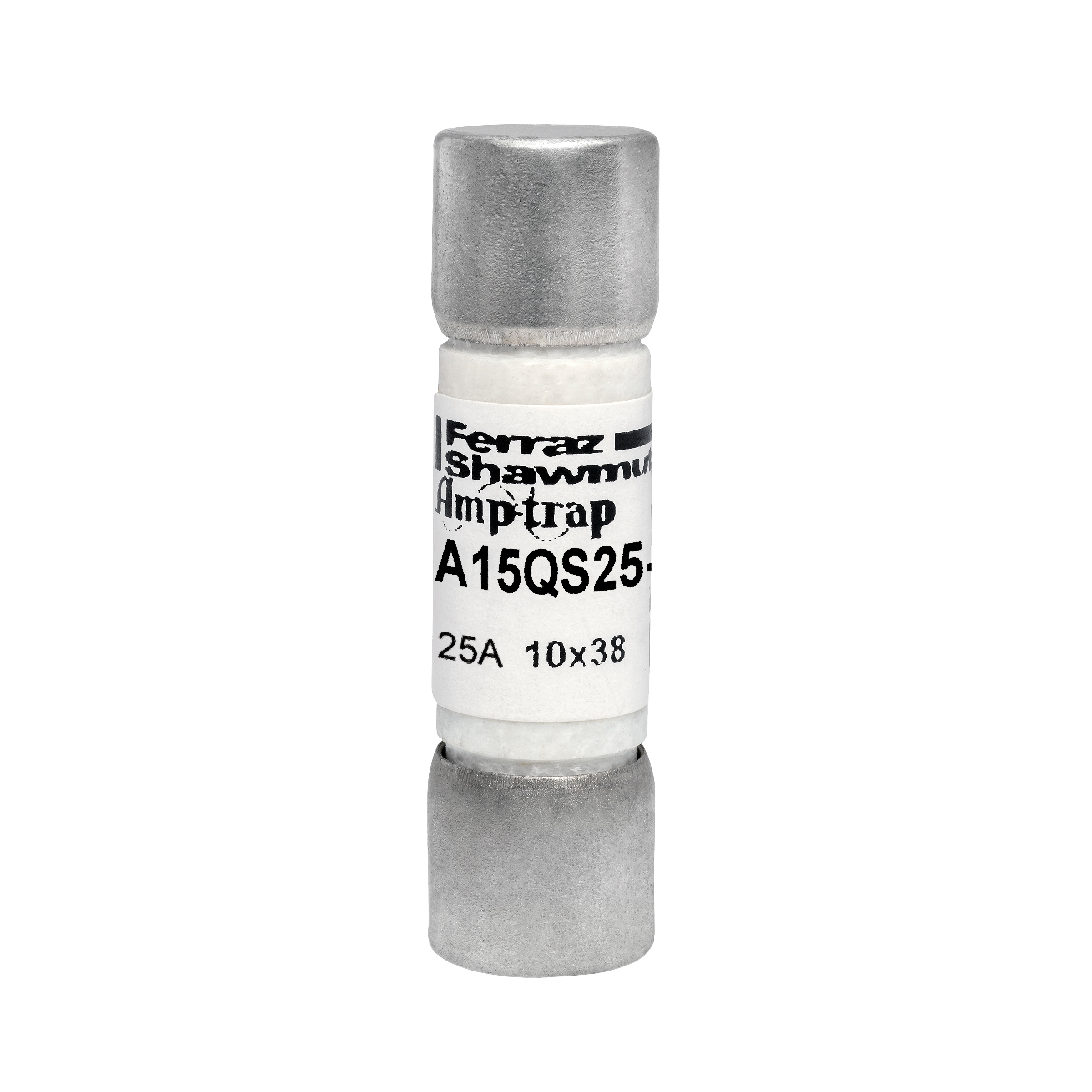

Product image for Mersen A15QS25-2 150V 25A SEMICOND
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Mersen A15QS25-2 150V 25A SEMICOND

Manufacturer: Mersen | Catalog # A15QS25-2 | QED Part # 3537005
$23.70 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.

Technical Information

Amperage
25 Amp
Applications
For Protection of AC/DC Drives, UPS, Rectifiers and other Equipment of 150 V or Less
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kAIC
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
150 V
Rated Voltage DC
150 V
Tc Connection
Ferrule
Terminal Type
Ferrule
Type
High Speed
Voltage
150 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001457815
Product UPC
78200145781
Weight
0.02 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Low I²t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types provides options for unique termination requirements
Certifications
  • UL recognized component UL File E60314
  • AC: UL guide no. JFHR2 (1-4000A)
  • DC tested to UL standard 198L parameters (1-4000A)
