ILS D-2738 CU MEC 500-1/0 T UR CSA

Manufacturer: Ilsco | Catalog # D2738 | QED Part # 353272
$202.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

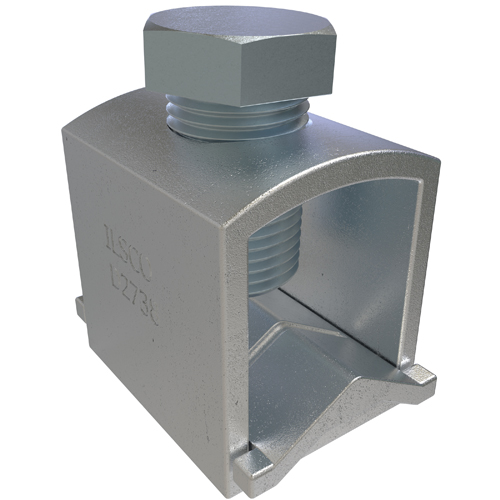

Copper Box-Type Mechanical Lug with Pressure Plate, Conductor Range 500-1/0, 1 Hole, Round Boss

Technical Information

Applications
Box-Type Mechanical Lug with Pressure Plate
Material
Copper
Number of Conductors
1
Standard
UL Specifications: Tested To UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
COPP:BOX TYPE W/PLATE
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669028256
Color
Silver
Finish
Tin Plated
Product UPC
78366902825

Dimensions

Height
1.416 in
Length
1.375 in
Width
1.130 in
