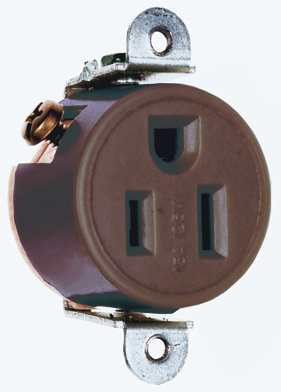

Pass & Seymour 5258 Commercial Grade Short Strap Single Receptacle Side Wire 15A 125V - Brown

Manufacturer: Legrand Pass & Seymour | Catalog # 5258 | QED Part # 3521048
$20.77 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Short Strap Spec Grade Single Receptacle, Side Wire, 15amp 125volt, Ivory

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
5-15R
NEMA Rating
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
1.32 L x 1.00 W x 1.75 H In
Standard
NEC®
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Short Strap
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007525809
Color
Light Brown
Product UPC
78500752580
UNSPSC
39121406

Dimensions

Depth
1 Inch
Height
1.49 Inch
Warranty Length
1 yr
Width
1.49 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • CSA Listed
  • UL Listed
