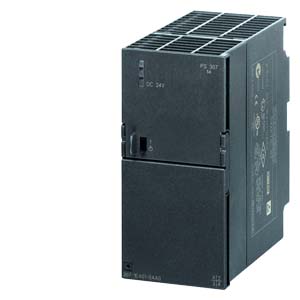

Siemens 6ES73071EA010AA0 120 to 230 VAC Input 24 VDC 5 Amp Output Stabilized Power Supply

Manufacturer: Siemens | Catalog # 6ES73071EA010AA0 | QED Part # 3479599
$733.85 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Simatic S7-300 Stabilized Power Supply PS307 Input: 120/230 V AC Output: DC 24 V DC/5 A

Technical Information

Amperage
5 Amp
Applications
For S7-300 Universal Controller
Connection Type
Screw-Type Terminals
Efficiency
0.87
Frequency
47-63 Hz
Input Current
1.2 A
IP Rating
IP20,IP20
Mounting Type
S7 Rail
Net Weight
1 kg
Number of Phases
1 Phase
Output Voltage
24 V
Power Rating
120 W
Standard
UL 508,CSA C22.2 No. 60950-1,File E197259,CE,CSA,UL 60950-1,CB Approval,CSA C22.2 No. 107.1,UL
Temperature Rating
0 - 60 degrees C
Terminal Type
Screw
Type
PS307, Single Phase
Voltage
24 Volt
Wattage
120 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Simatic

General Product Info

12-Digit UPC
662643517958
Environmental Conditions
Non Operating Temperature (-10 To +70 DEG C)
Product UPC
66264351795
Weight
1.323 kg

Dimensions

Depth
120 mm
Height
125 mm
Length
120 mm
Width
60.0 mm

Certifications and Compliance

Country of Origin
Romania
