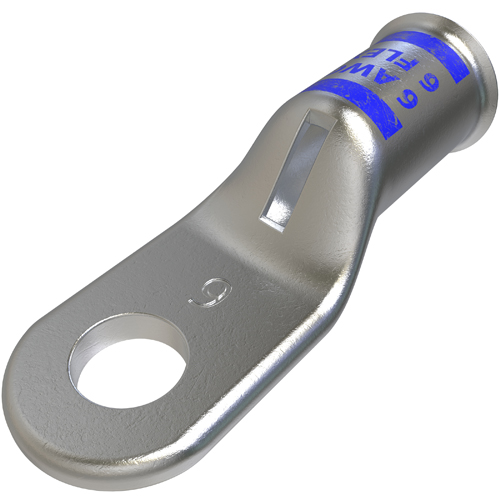

Image thumbnail 2
To:
CC:

ILSCO CCL-6-10 6 AWG #10 Stud Electrotinned Copper 1-Hole Compression Cable Lug

Manufacturer: Ilsco | Catalog # CCL-6-10 | QED Part # 3449437
$3.87 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size #10 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 6 Str, sight window, Round tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,

Technical Information

Applications
Terminating Connector
Bolt Size
#10
Color Coding
Blue
Conductor Size
6 AWG
Material
Copper
Size
L:1.27;W:0.445;H:0.385 IN
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031102
Color
Silver
Product UPC
78366903110

Dimensions

Inside Diameter
0.232 in
Outside Diameter
0.299 in

Certifications and Compliance

Country of Origin
India
