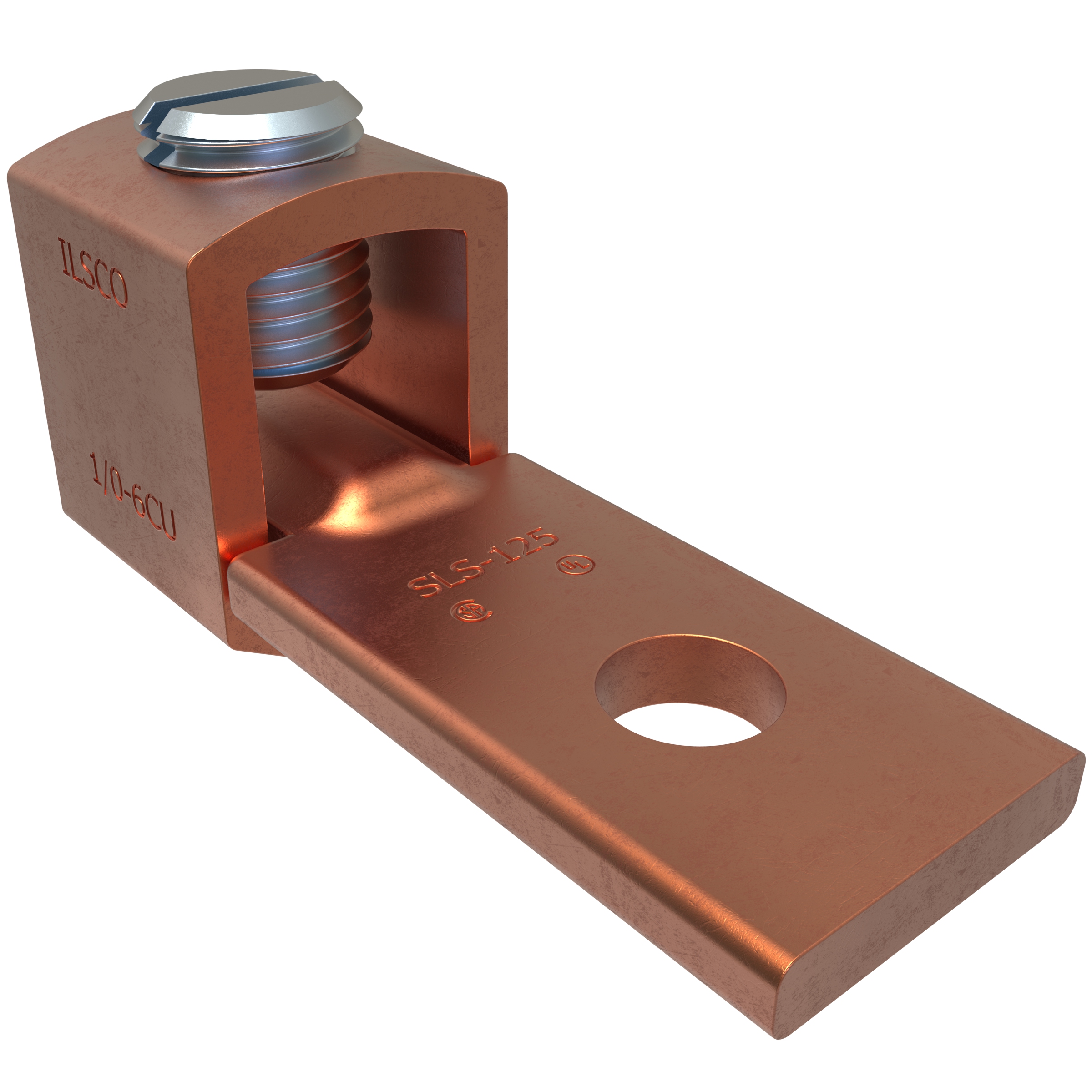

Product image for ILS SLS-125 CU MEC 1/0-6 17/64 B UL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ILS SLS-125 CU MEC 1/0-6 17/64 B UL

Manufacturer: Ilsco | Catalog # SLS-125 | QED Part # 3425115
$14.67 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 1/0 Str - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For Terminating Connector and for Copper Conductor Only
Bolt Size
17/64 in
Conductor Size
6-1/0 AWG
Material
Copper
Mounting Hole Size
0.266 in
Number of Conductors
1
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
SLU, Offset Tongue, Straight
Voltage
2000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669822847
Color
Copper
Finish
Bright
Product UPC
78366982284

Dimensions

Length
1.937 in
Width
0.625 in

Certifications and Compliance

Country of Origin
India
