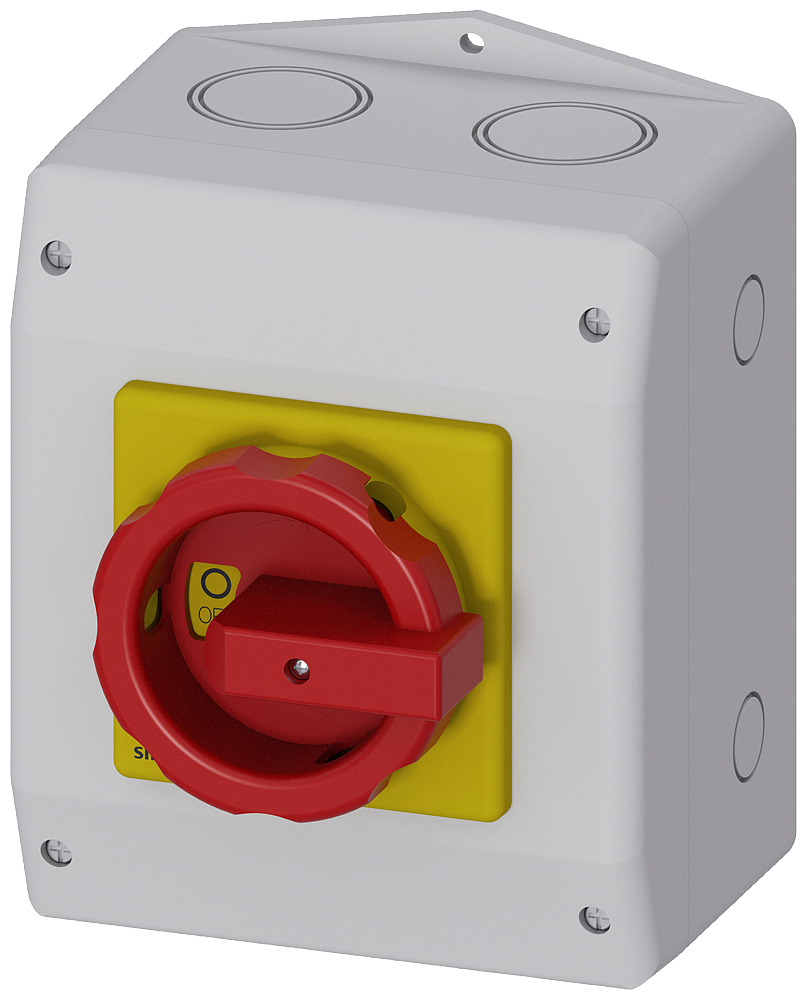

Product image for Siemens Ca 3LD25651GP530US2 3LD SW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens Ca 3LD25651GP530US2 3LD SW

Manufacturer: Siemens | Catalog # 3LD2565-1GP53-0US2 | QED Part # 3402344
$2,141.13 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SENTRON, 3LD switch disconnector, EMERGENCY-STOP switch, 3-pole, Iu:63 A, Operational power / at AC-23 A at 400 V: 22 kW, molded- plastic enclosure for inch threaded joint, 1NC, 1NO, rotary operating mechanism, red/yellow

Technical Information

Actuator
Rotary
Amperage
63 Amp
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
Yes
Indicator
N/A
Mounting Type
Center Hole Mounted
Number of Poles
3 Pole
Operating Cycles
N/A
Operating Temperature
-20F to 120F Ambient Temp
Size
6x6x8
Standard
UL
Tc Connection
N/A
Trip Type
N/A
Type
3LD
Voltage
690 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643975415
Product UPC
78364397541
Weight
2.155 lb

Dimensions

Depth
149 mm
Height
201 mm
Length
8 Inch
Width
146 mm

Certifications and Compliance

Country of Origin
Germany
