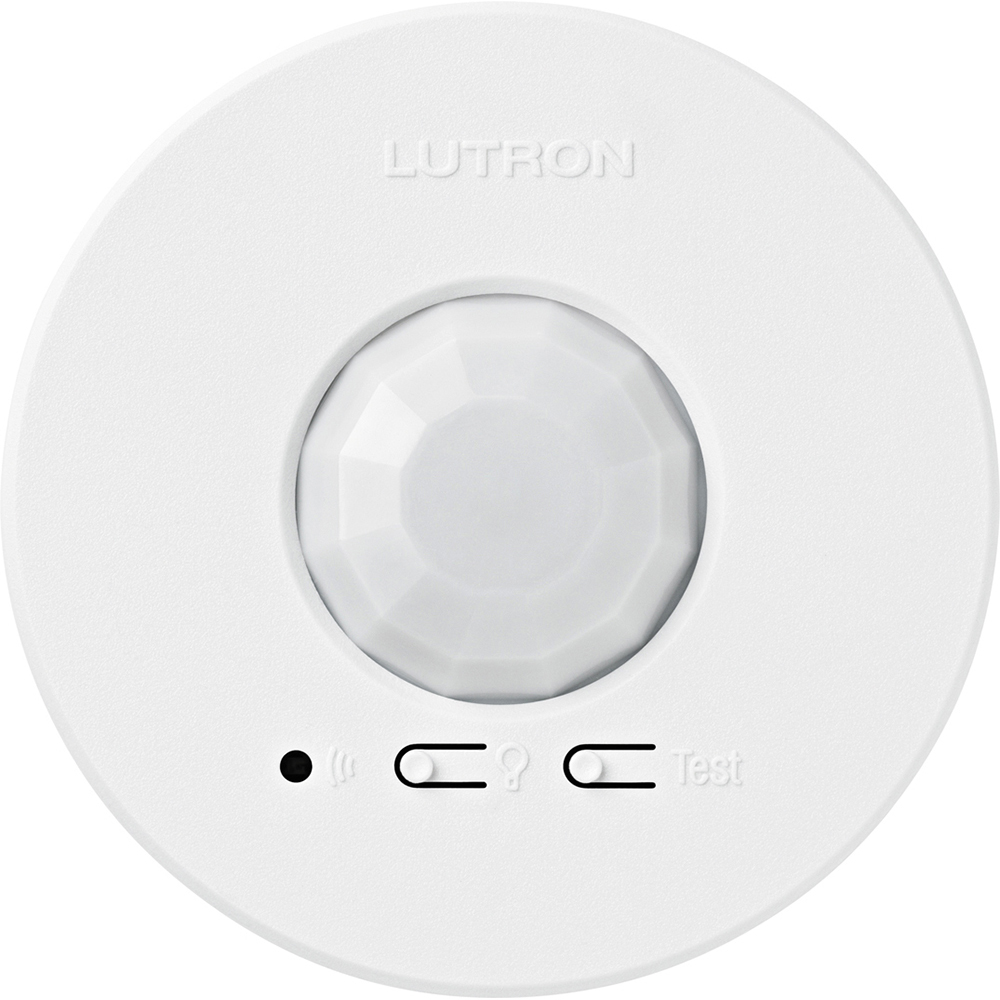

Lutron LRF2-OCR2B-P-WH Wireless Occupancy/Vacancy Ceiling Sensor - White

Manufacturer: Lutron Electronics | Catalog # LRF2-OCR2B-P-WH | QED Part # 3397822
$139.90 /ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Centennial Closes 4:00PM MT
12 Available for Delivery

For Delivery

Check another branch
Primary Spec Sheet
Radio Powr Savr Wireless Occupancy/Vacancy Sensor, Ceiling-mount, 434 MHz, White finish

Technical Information

Amperage
0.014 mA
Applications
For Lighting Control
Enclosure
Plastic
Enclosure Material
Plastic
Material
Plastic
Mounting Type
Ceiling/Surface
Operating Temperature
32 To 104 degrees F
Power Supply
3 V
Sensing Range
324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), 360 degree field of view
Sensor Type
Passive Infrared
Standard
ANATEL,COFETEL,CUL,FCC,IC,SUTEL
Temperature Rating
0 degrees C to 40 degrees C
Type
Wireless, Indoor
Voltage
3 VDC

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Radio Powr Savr™

General Product Info

12-Digit UPC
027557831970
Color
White, Matte
Environmental Conditions
For Indoor Use Only
Product UPC
02755783197
Weight
0.2500 lb

Certifications and Compliance

Country of Origin
Mexico
Features
  • Battery-powered passive infrared (PIR) sensor that automatically controls lights via RF communication to compatible dimming and switching devices
  • This sensor detects the heat from people moving within an area to determine when the space is occupied
  • The sensor then wirelessly transmits the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically
  • Combines both convenience and exceptional energy savings potential along with ease of installation
  • Has 3 settings available: auto-on/auto-off, auto-on low-light/auto-off, and manual-on/auto-off
  • Auto-on low-light feature will turn lights on automatically only if there is less than approximately 10 Lux (1 fc) of ambient light
  • Uses Clear Connect technology
  • PIR motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 360 degree coverage from 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), depending on mounting height
  • Simple and intuitive adjustments available for timeout, auto-on, and activity settings
  • Supports advanced occupancy features such as dependent occupancy groups and customizable occupied/unoccupied presets in some systems
  • Multiple sensors can be added for extended coverage
  • Lens illuminates during test mode to verify ideal locations
  • Multiple ceiling-mount methods available for different ceiling materials
  • Front accessible test buttons make programming easy
  • 10-year battery life design.
Standards and Certifications
  • ISO
  • CULUS
  • IC
  • COFETEL
  • ANATEL
  • SUTEL
  • FCC
  • cUL
