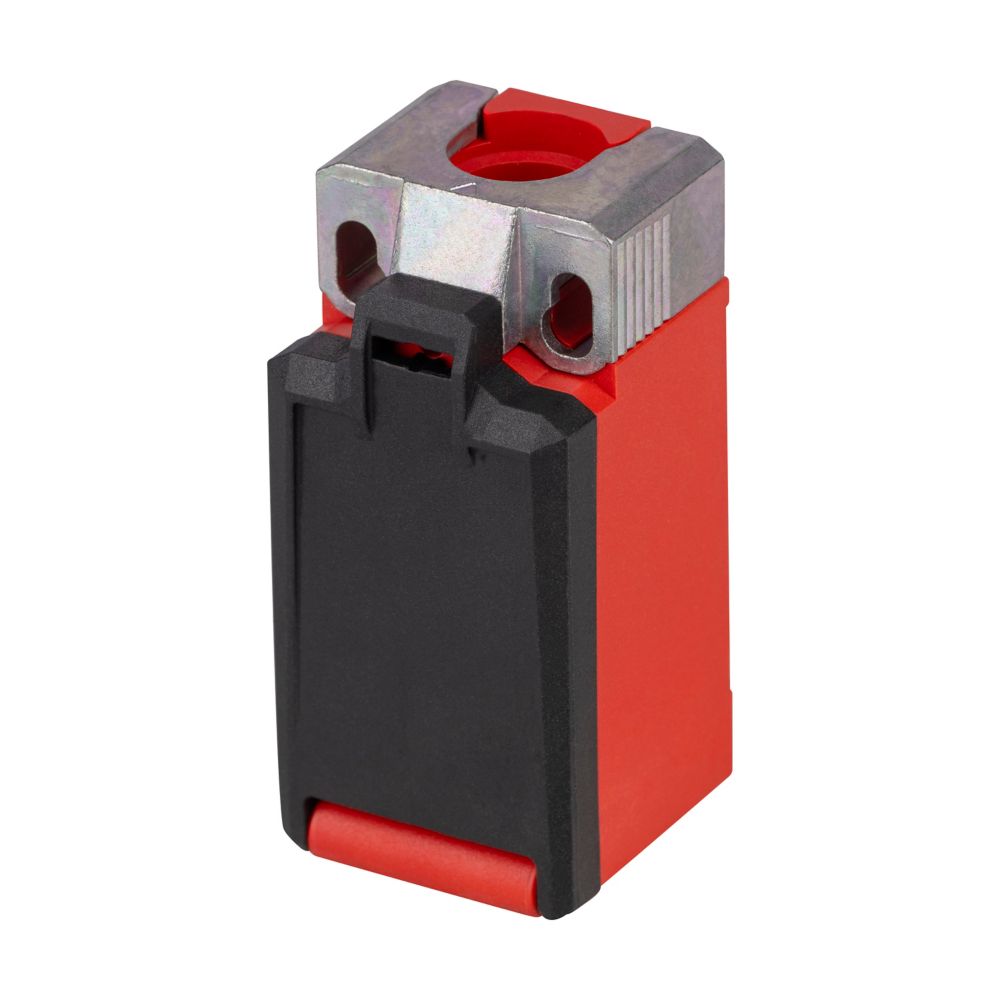

Product image for ETN E49S71 COMPACT DIN LIMIT SWITCH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ETN E49S71 COMPACT DIN LIMIT SWITCH

Manufacturer: Eaton Cutler-Hammer | Catalog # E49S71 | QED Part # 3334425
$115.08 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page
E49 IEC Limit Switchbody, 1x Normally Open (NO) Contact/1x Normally Closed (NC) Contact, 5A continuous@240VAC and 24VDC, Screw Terminals, M20 conduit entry

Technical Information

Actuator
Push-button
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and ControlsStationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
Connection Type
Screw-Type Terminals
Contact Configuration
1NO-1NC
Contact Rating
10A at 240 Vac, 1.5A at 30 Vdc
Enclosure Material
Plastic
Mounting Type
Miniature DIN Rail
Operating Temperature
-22 To 176 degrees F
Tc Connection
Screw Terminals
Type
IEC mechanical limit switch

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113742038
Product UPC
78211374203
Weight
.01 lb

Dimensions

Height
1.2 Inch
Length
2.91 Inch

Certifications and Compliance

Country of Origin
Germany
