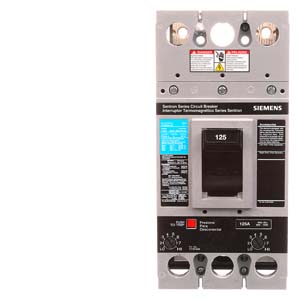

Product image for Siemens FXD62B125 BRKR FD6 2P 600V 125A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens FXD62B125 BRKR FD6 2P 600V 125A

Manufacturer: Siemens | Catalog # FXD62B125 | QED Part # 3328373
$1,120.94 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 125A 2-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 4.50 x 9.5 x 4.00.

Technical Information

Actuator
Varying
Amperage
125 Amp
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
2 Pole
Operating Temperature
40C
Standard
HACR
Tc Connection
N/A
Trip Range
800-1500
Trip Type
Thermal-Magnetic
Type
FXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211131
Product UPC
78364321113
Weight
7.000 lb

Dimensions

Height
5.45 Inch
Length
6-1/2 Inch
Width
6.500 in

Certifications and Compliance

Country of Origin
Mexico
