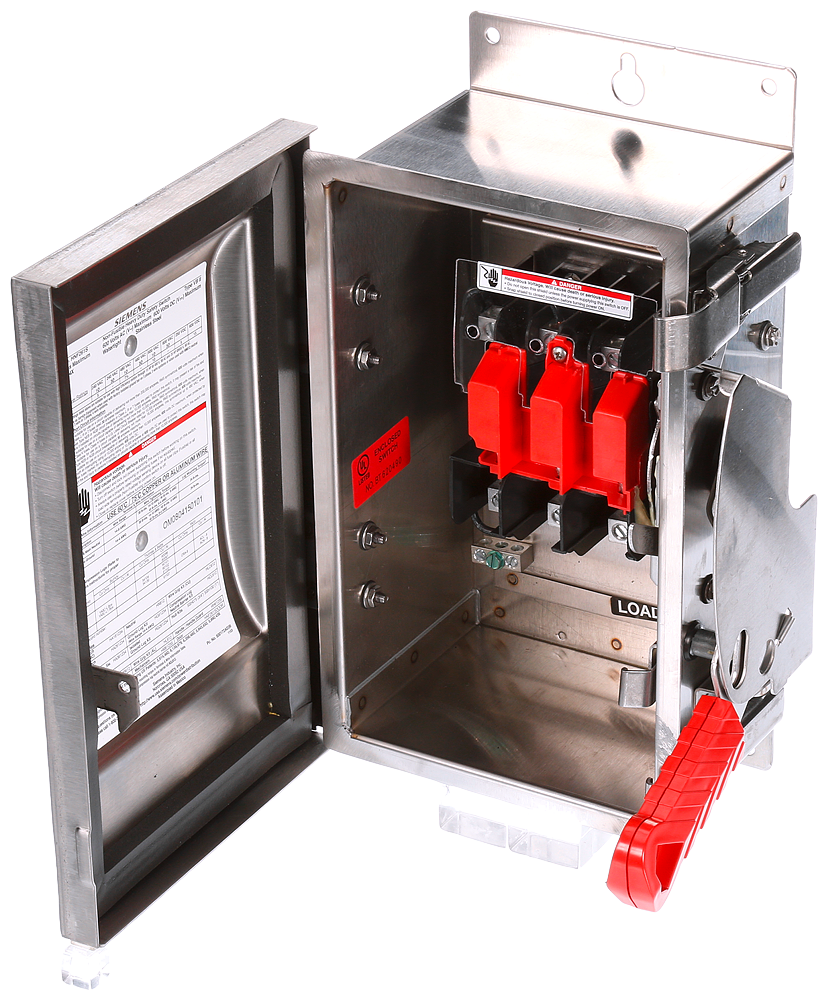

Product image for Siemens HNF261S 600 VAC 30 Amp 2-Pole 2-Wire NEMA 4X Heavy Duty Non-Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens HNF261S 600 VAC 30 Amp 2-Pole 2-Wire NEMA 4X Heavy Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # HNF261S | QED Part # 3290688
$1,998.76 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Centennial opens monday 6:00am mt
Check another branch
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 2-Pole Non-Fused in a type 4/4X 304 grade Stainless Steel enclosure. Rated 600VAC (30A).

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
30 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA4X
Frequency
60 Hz
Insulated?
Yes
Material
Stainless Steel
Mounting Type
SURFACE
Number of Poles
2 Pole
Operating Cycles
10000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Voltage
600 Volt
Wattage
2 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643174092
Product UPC
78364317409
Weight
14.550 lb

Dimensions

Height
8.1 Inch
Length
16.9 Inch
Width
11.900 in

Certifications and Compliance

Country of Origin
Mexico
