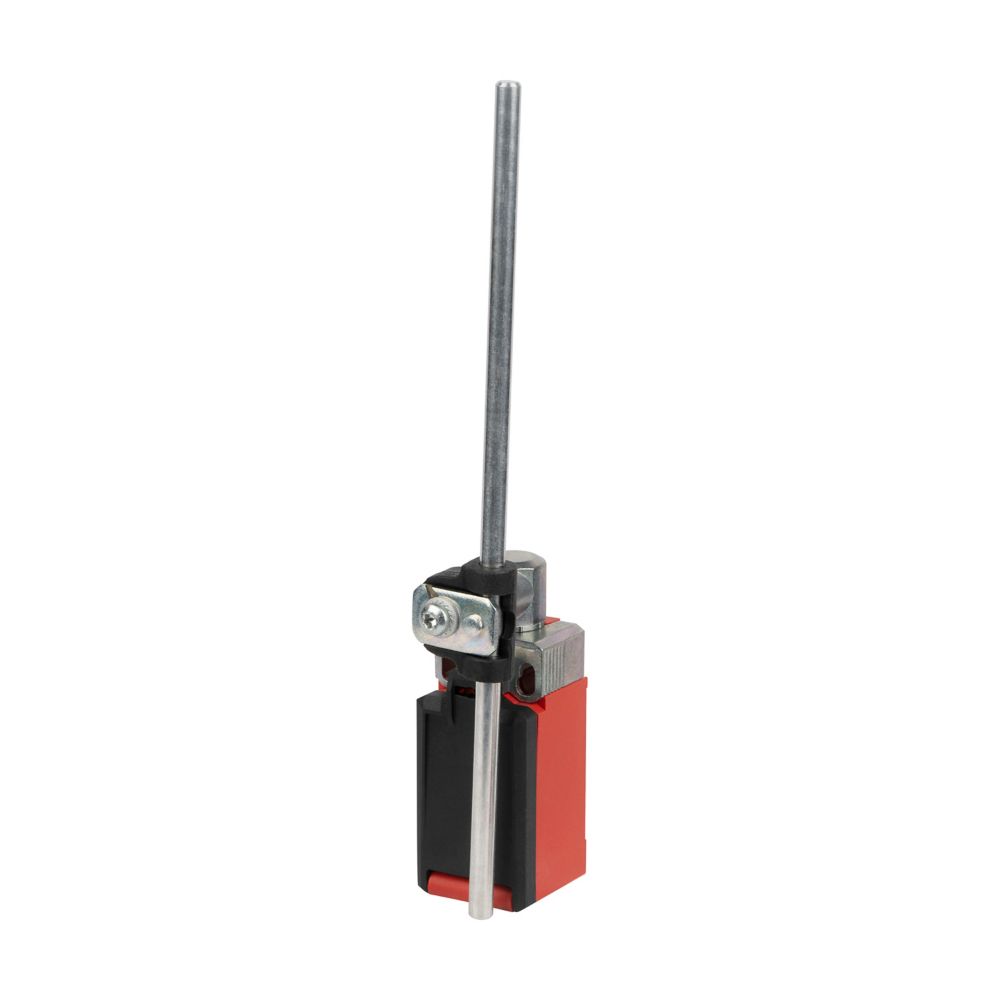

ETN E49S71DP7 COMPACT DIN LIMIT SWI

Manufacturer: Eaton Cutler-Hammer | Catalog # E49S71DP7 | QED Part # 3290625
$157.28 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page
E49 IEC Limit Switch, Side Rotary, Rod Lever, 1x Normally Open (NO) Contact/1x Normally Closed (NC) Contact, 5A continuous@240VAC and 24VDC, Screw Terminals, M20 conduit entry

Technical Information

Actuator
Top Push Rod
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and ControlsStationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
Connection Type
Screw-Type Terminals
Contact Configuration
1 NO, 1 NC
Contact Rating
10A at 240 Vac, 1.5A at 30 Vdc
Enclosure Material
Plastic
Mounting Type
Miniature DIN Rail
Operating Temperature
-22 To 176 degrees F
Standard
CSA,UL
Tc Connection
Screw Terminals
Type
IEC mechanical limit switch

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113742175
Product UPC
78211374217
Weight
.5 lb

Dimensions

Height
1.92 Inch
Length
6 Inch

Certifications and Compliance

Country of Origin
Germany
