LH Dottie TEKDD812 #8 x 1/2 Inch Zinc Plated Steel Pan Head Square Drive Self Drilling Screw | Quality Electrical Distribution (QED)

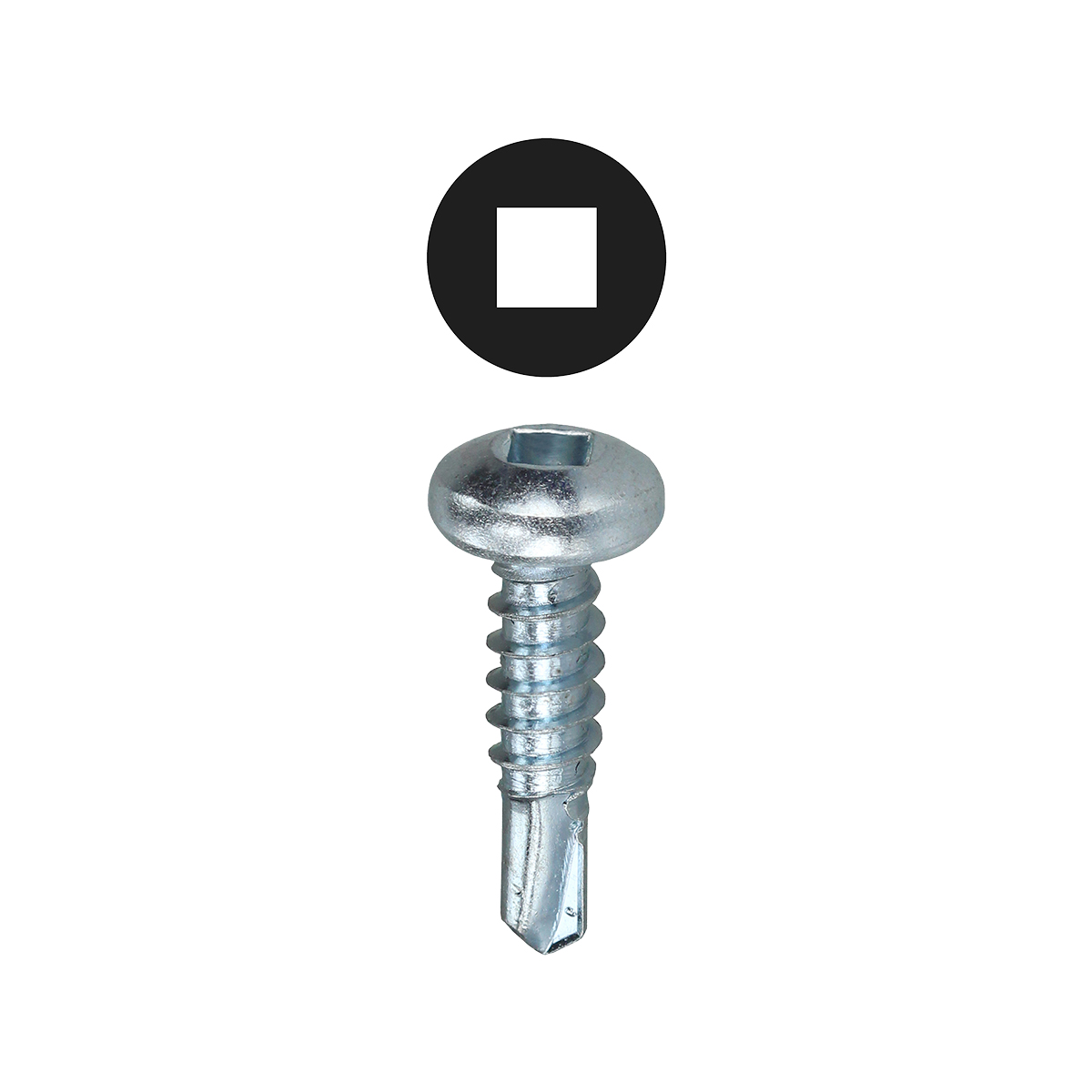

Product image for LH Dottie TEKDD812 #8 x 1/2 Inch Zinc Plated Steel Pan Head Square Drive Self Drilling Screw
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

LH Dottie TEKDD812 #8 x 1/2 Inch Zinc Plated Steel Pan Head Square Drive Self Drilling Screw

Manufacturer: L.H. Dottie Company | Catalog # TEKDD812 | QED Part # 3283691
$25.31 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Buy American Compliant Buy American Compliant Primary Spec Sheet
Self-Drilling Screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.

Technical Information

Applications
For Removing Metal And Can Be Used In Heavier Gauge Metals
Bit Size
#2
Drive Size
#2
Drive Type
Square
Head Type
Pan
Material
Steel
Size
1/2 in
Style
Pan Head
Thread Size
0.164 in
Thread Type
BSD
Type
Self Drilling Screw

Manufacturer Information

Brand
L.H. Dottie

General Product Info

12-Digit UPC
781002595007
Finish
Zinc
Product UPC
78100259500
UNSPSC
31161528

Dimensions

Diameter
8 Inch
Head Diameter
0.306 in
Length
1/2 Inch

Certifications and Compliance

Buy American Compliant
Y
Applications
  • Metal to Metal
Certifications
  • IFI-113
Special Features
  • Drill
  • Taps and Fastens in One Operation
