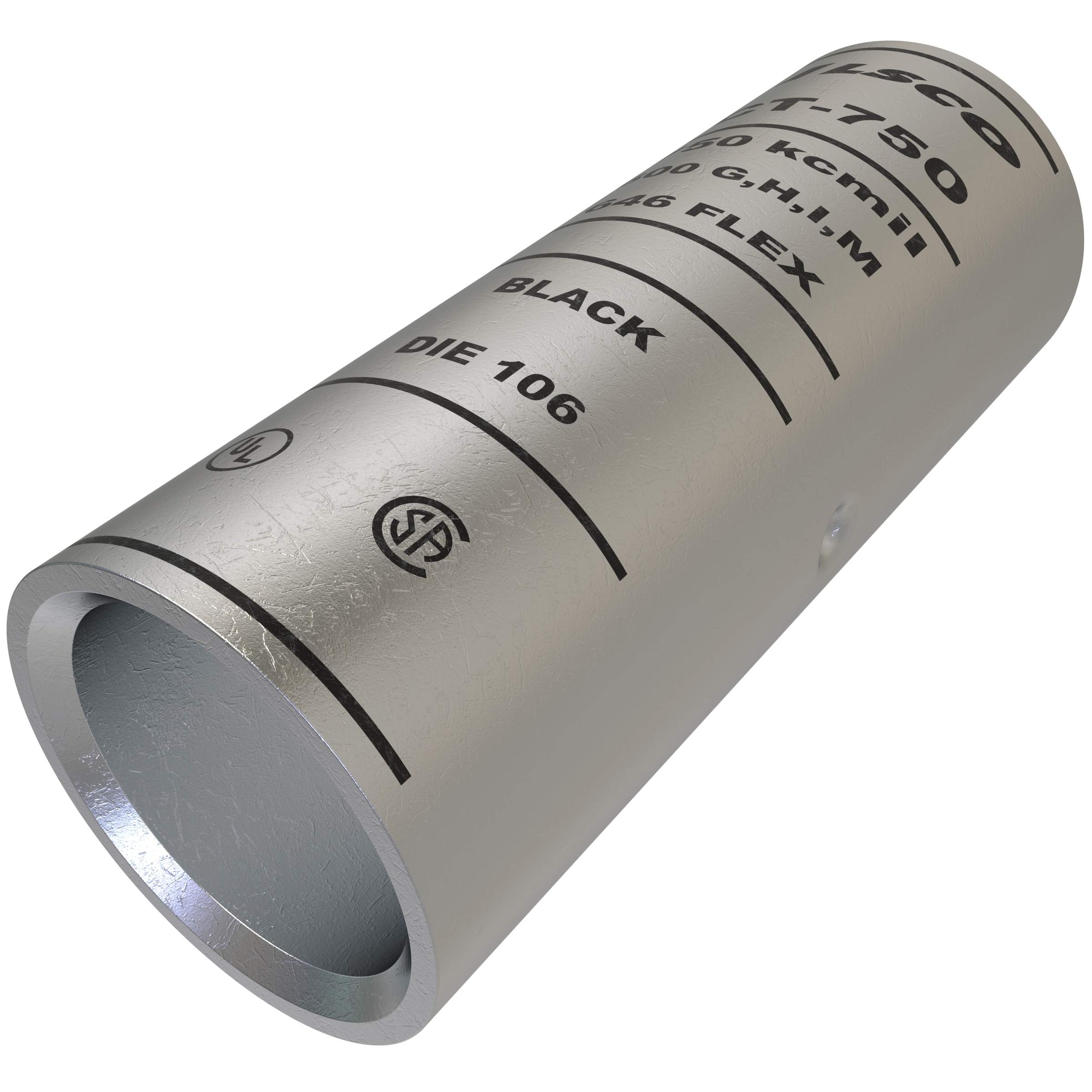

Ilsco CT-750 SureCrimp® Copper Compression Sleeve, Conductor Size 750, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CT-750 | QED Part # 3280463
$74.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Copper Compression Sleeve, Short Barrel, Compression connection, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 750 kcmil, 1 conductors, no sight window, flex conductor range 600 G,H,I,M 646.4 DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-106,

Technical Information

Applications
Copper Compression Sleeve, Short Barrel
Color Coding
Black
Conductor Size
500 MCM
Material
Copper
Size
L:3.375;W:1.313;H:1.031 IN
Standard
UL Specifications: UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601,NEBS Rating: LEVEL 3
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
CT:SHORT BARREL SLEEVE
Voltage
35,000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669126303
Color
Silver
Finish
Tin Plated
Product UPC
78366912630

Dimensions

Inside Diameter
1.031 in
Length
3.375 in
Outside Diameter
1.313 in
