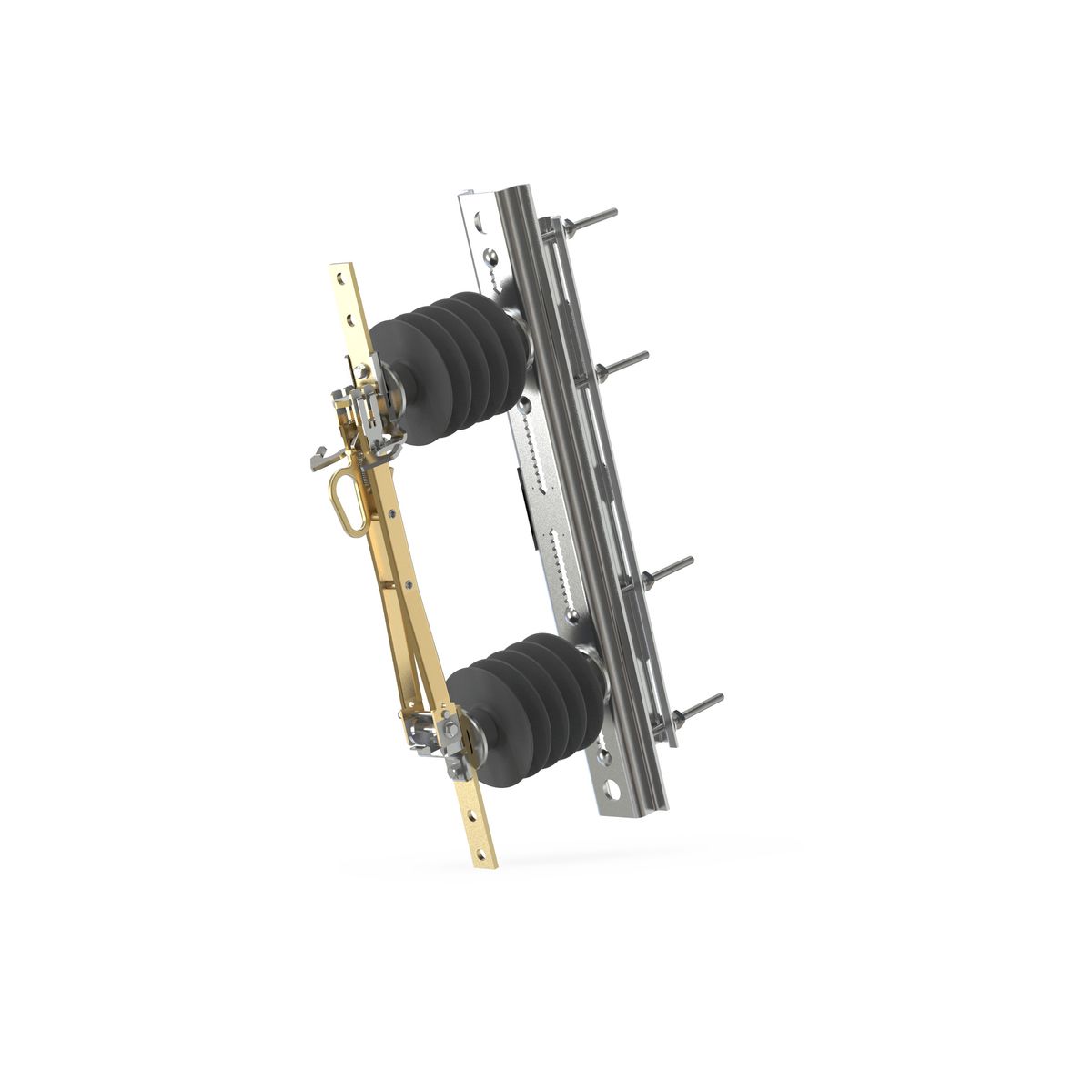

Hubbell Power M3D67B 600 Amp 25 kV 125 kV BIL Polymer Overhead Disconnect Switch

Manufacturer: Hubbell Power Systems | Catalog # M3D67B | QED Part # 3254170
$712.56 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
27 kV, 125kV BIL, 600 A, Single-Phase Hookstick Disconnect Switch.

Technical Information

Amperage
600 Amp
Applications
Distribution
Base Material
Galvanized Steel
Blade Type
Solid Copper
Bolt Length
8.00 in
Contact Base Material
Silver
Contact Configuration
Silver / Silver
Contact Material
Silver
Current
600 Amp
Indicator
Visible Break
Material Type
Standard
Max Voltage
27 kV
Number of Poles
1 Pole
Size
24 IN
Standard
ANSI,IEEE
Tc Connection
NEMA two-hole, Tin-plated Copper
Temperature Rise
28 degrees C
Trip Type
Manual
Type
M3 Disconnect
Voltage
27 kV
Wattage
50/60 Watt

Manufacturer Information

Brand
Chance
Sub Brand
Chance

General Product Info

12-Digit UPC
096359321224
Color
Dark Gray
Product UPC
09635932122
Weight
38.71 lb

Dimensions

Depth
13.06 Inch
Height
28 Inch
Length
28-1/4 Inch
Width
5.4 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Fully Compliant with ANSI/IEEE C37.30.1
  • 15, 27 & 38kV Voltage Classes
  • 110, 125, 150, 200kV BIL Insulation Levels
  • 600A & 900A Current Ratings
  • Porcelain and ESP Polymer Insulator Assemblies with 2.25 Bolt Circles
  • Distribution Base, Serrated Slots
  • Load Break Option Available
  • Dimensions provided below are installed dimensions
