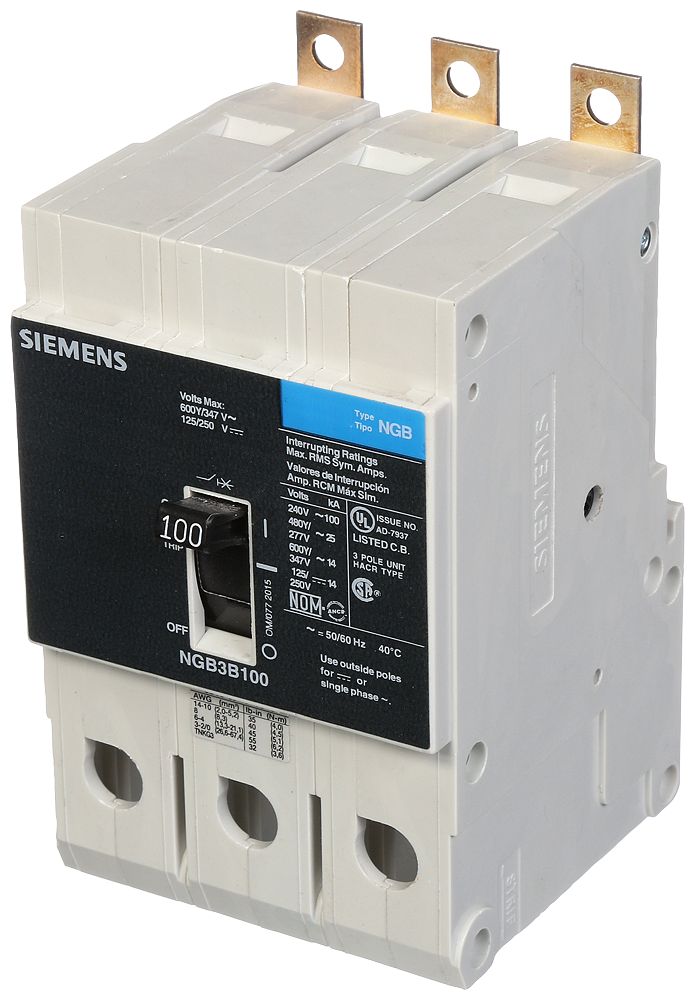

Product image for Siemens NGB3B100B 3-Pole 100 Amp 600 Volt 14 kA Molded Case Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens NGB3B100B 3-Pole 100 Amp 600 Volt 14 kA Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # NGB3B100B | QED Part # 3226750
$756.56 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x Hx D) IN 3 x 5.4 x 2.8.

Technical Information

Amperage
100 Amp
Applications
INDUSTRIAL
Current
100 Amp
Frequency
50/60 Hz
Interrupt Rating
14 kAIC
Mounting Type
Panelboard Bus
Number of Poles
3 Pole
Operating Temperature
40DEGC
Tc Connection
Load Lugs
Trip Type
Thermal Magnetic
Type
NGB
Voltage
347 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
NGB

General Product Info

12-Digit UPC
783643414372
Product UPC
78364341437
Weight
2.650 lb

Dimensions

Height
4.9 Inch
Length
7-1/4 Inch
Width
6.300 in

Certifications and Compliance

Country of Origin
Mexico
