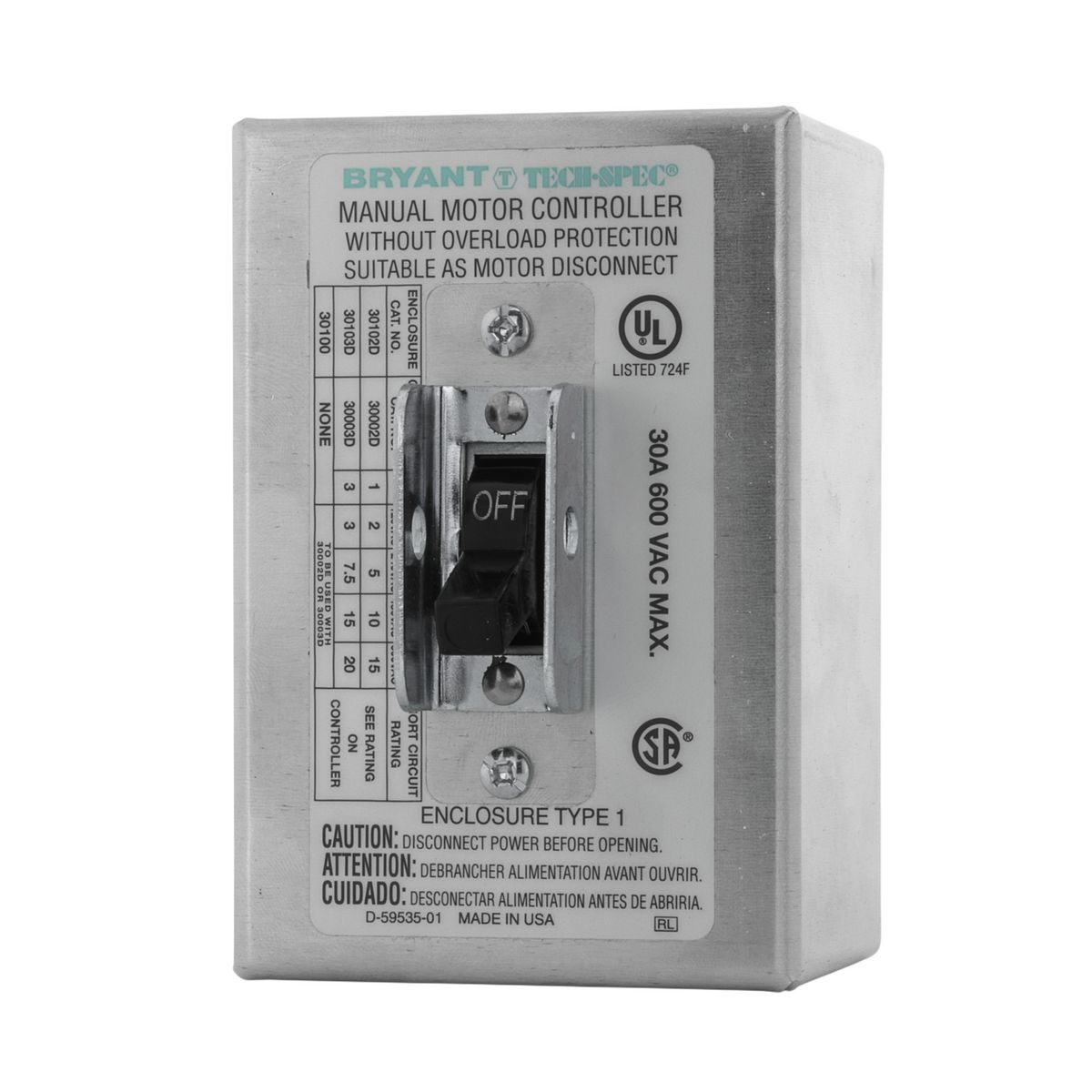

HCI 30103D 30A 600V 3P DISC SW W/NE

Manufacturer: BRYANT | Catalog # 30103D | QED Part # 3222821
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Side Wired Only, Aluminum, With NEMA 1 Enclosure

Technical Information

Amperage
30 Amp
Applications
Motor Starting without Overload Protection
Coil Voltage
No Coil
Current
30 Amp
Disconnect Type
Manual
Enclosure Type
NEMA 1, Aluminum
Grade
Industrial
Material
Aluminum
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Power Supply
No Power Supply
Reset Type
No Reset
Size
Standard Sized Product
Style
Standard Duty
Tc Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Standard
Voltage
600 Volt
Wattage
18000 Watt

Manufacturer Information

Brand
Bryant
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786631564
Color
Aluminum
Product Series
Non-Fused
Product UPC
78178663156

Dimensions

Height
3.168 Inch
Length
4.858 Inch
Width
4.100 in

Certifications and Compliance

Country of Origin
USA
Features
  • Toggle
  • Motor Disconnects
  • Three Pole
  • 30A 600V AC
  • Side Wired Only
  • Standard Product
