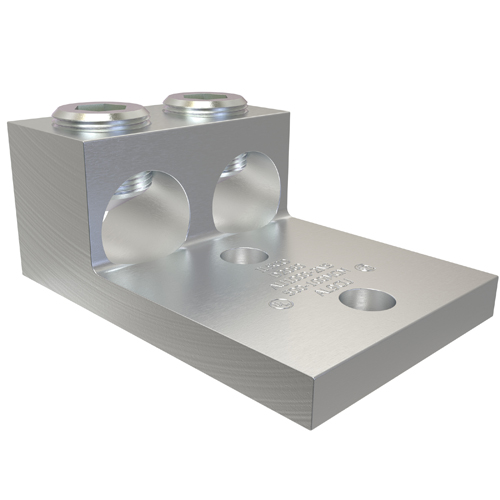

Ilsco AU-1000-2NS Aluminum Mechanical Lug, Conductor Range 1000-500, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-1000-2NS | QED Part # 3218907
$123.50 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1000 kcmil - 500 kcmil, 2 conductors, 2 ports/wireways, Drive Type Main 9/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
1/2 in
Conductor Material
Aluminum,Copper
Conductor Size
500-1000 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
2
Number of Holes
2 Hole
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
AU:2 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669007947
Color
Silver
Finish
Tin Plated
Product UPC
78366900794
Used With
Either Copper or Aluminum Conductors
Weight
1.313 lb

Dimensions

Height
1.938 Inch
Length
4-3/4 Inch
Width
3.188 in
