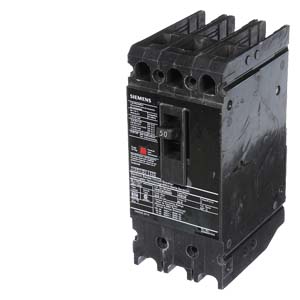

Siemens HHED63B050 3-Pole 50 Amp 600 VAC 18 kA Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # HHED63B050 | QED Part # 309547
$921.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH EXTRA HIGH BREAKING CAPACITY. 50A 3-POLE (18KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN: 3.00 x 6.5 x 3.92.

Technical Information

Actuator
Varying
Amperage
50 Amp
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
ED
Frequency
50/60 Hz
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
Tc Connection
N/A
Trip Range
N/A
Trip Type
Thermal-Magnetic
Type
HHED6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643308091
Product UPC
78364330809
Weight
4.160 lb

Dimensions

Height
5.65 Inch
Length
6-1/2 Inch
Width
5.550 in

Certifications and Compliance

Country of Origin
Mexico
