Hubbell Power T4033418 Auto Ranging Voltage Indicator Tester

Manufacturer: Hubbell Power Systems | Catalog # T4033418 | QED Part # 2673959
$3,970.43 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Convenient package includes accessories for Overhead as well as Underground Residential Distribution systems.

Technical Information

Applications
HV Electrical
Material Type
Standard
Style
Auto Ranging Voltage Indicator Kit
Tool Type
Voltage Indicator
Type
Indicator, Voltage

Manufacturer Information

Brand
Chance
Sub Brand
Chance

General Product Info

12-Digit UPC
096359371878
Product Type
Instruments/Meters
Product UPC
09635937187
Weight
16.3 lb

Dimensions

Height
10-3/4 Inch
Length
19-1/2 Inch
Width
10.250 in

Certifications and Compliance

Country of Origin
USA
Features
  • Makes hot-line voltage testing easier than ever
  • State-of-the-art electronics eliminate need for selector switch
  • Automatic-ranging function quickly displays approximate phase-to-phase voltage class
  • Provides easy, yet reliable means for operator to determine if a line is: De-energized, or Carrying less than normal system voltage from any source or induced voltage from an adjacent live circuit, or Energized at full system voltage
  • Simple-to-operate tester attaches to anEpoxiglas® insulating universal handle of appropriate length to maintain proper OSHA working clearances
  • Single push button activates the instrument, then a single light indicates either Power On (by glowing solid) or Low Battery (by blinking)
  • With good battery condition, instrument performs a confirming self-test
  • It does this by illuminating each of the six indicator lights in series while emitting an alternating audible signal
  • Then the probe can be brought into contact with the conductor
  • It automatically begins detecting at approximately 480 Volts and holds display of one of these voltage classes: 600 V, 4 kV, 15 kV, 25 kV, 35 kV or 69 kV phase-tophase
  • Audible signal begins as a slow beeping, becoming faster as final reading is displayed
  • When not in use, units energy-saving Sleep mode automatically conserves battery

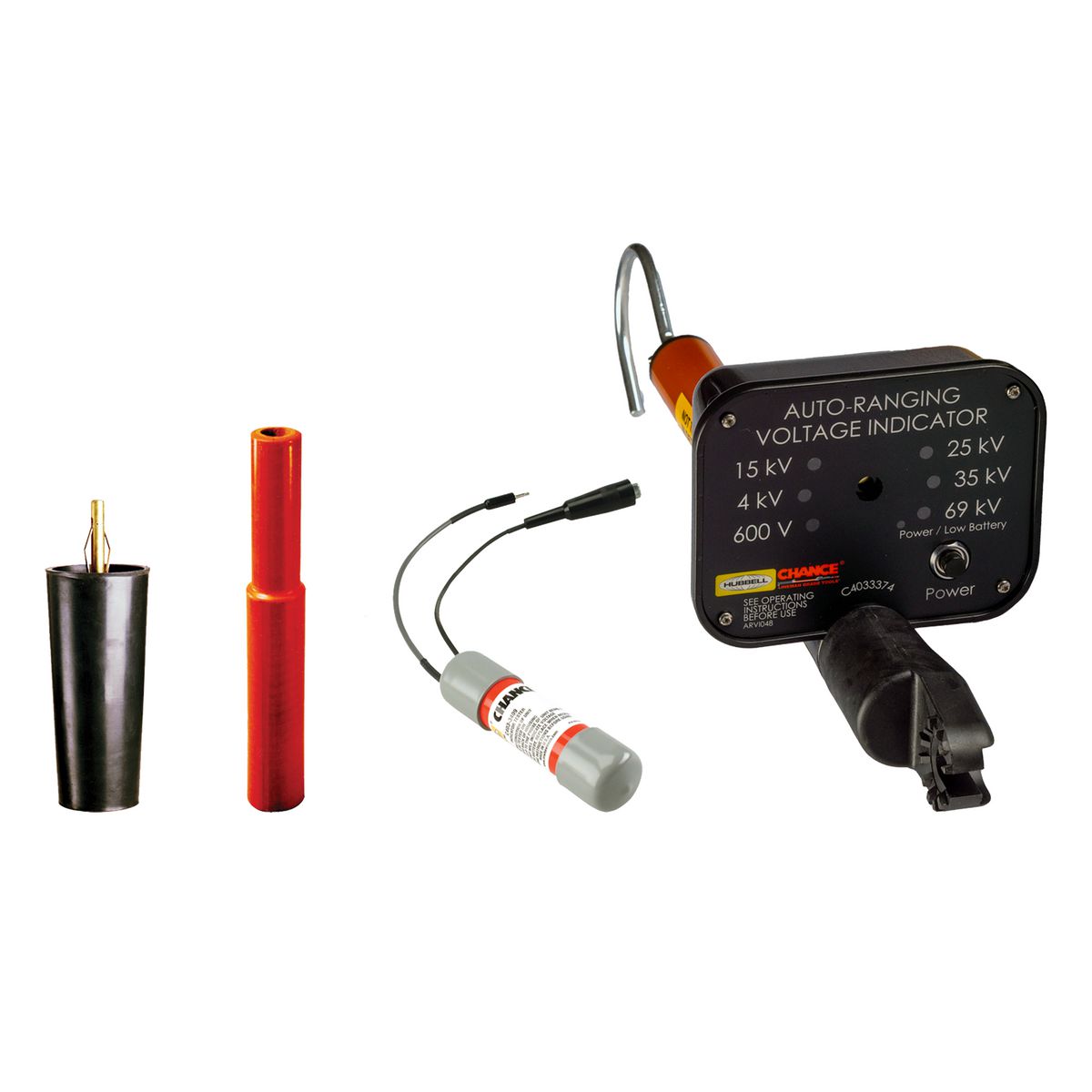

  • For overhead testing, a Shepherd Hook probe is included with the Basic ARVI (Auto-Ranging Voltage Indicator)
  • For underground testing, Elbow Adapter T4030856 and Bushing Adapter T4030857 are included
  • They simply thread onto the ARVI in the field to check for voltage at switch bushings or elbows on cables, using a feed-thru device
