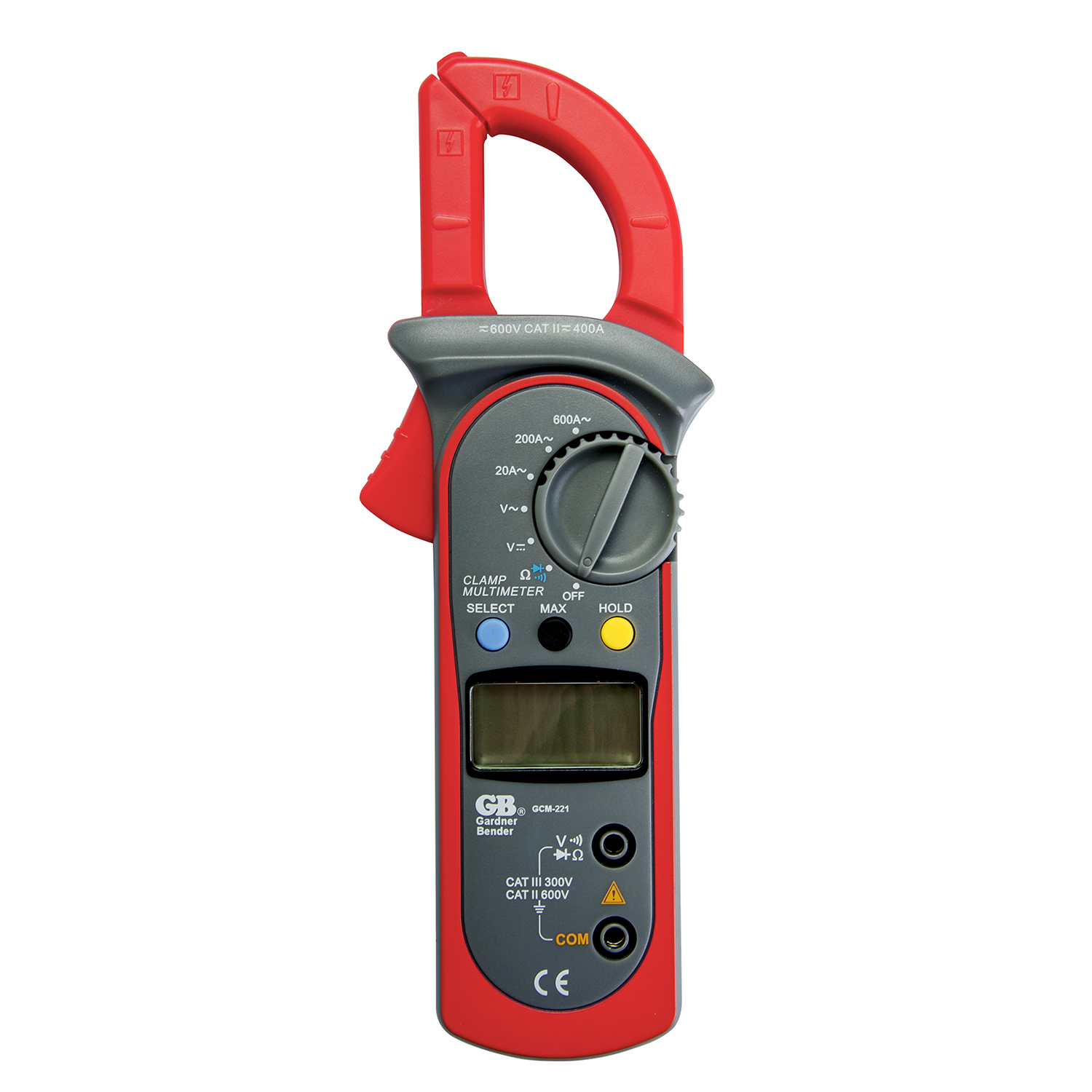

ILS GCM-221 Compact Clamp Meter 1/

Manufacturer: Gardner Bender | Catalog # GCM-221 | QED Part # 2004551
$254.85 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
The Gardner Bender Digital Clamp Meter measures current up to 600 amps, voltage to 600 volts (300-volt CAT III and 600-volt CAT II) and resistance to 200 ohms. This versatile tool features an easy-to-read LCD display and data-hold functionality for easy retrieval. It is durably designed to withstand operating environments up to 104 degrees Fahrenheit and it is 6 ft. drop- and 150 lb. crush rated.

Technical Information

Amperage
600 Amp
Standard
CAT Rating II 600V,CE Certified,III 300V
Voltage
600 Volt

Manufacturer Information

Brand
Gardner Bender

General Product Info

12-Digit UPC
032076049034
Product UPC
03207604903

Certifications and Compliance

Country of Origin
China
Overview
  • Measures current up to 600 amps, voltage to 600 volts (300-volt CAT III and 600-volt CAT II) and resistance to 200 ohms with a sample rate of 2 Hz
  • Easy-to-read digital LCD display
  • Auto ranging for improved readings
  • Data-hold feature built in for convenient retrieval
  • Low-battery indicator
  • Powered by only 2 AAA batteries (not included)
  • Pocket size for easy access and use
  • 1 in. jaw opening
  • Operating temperature range from 32 - 104 degrees Fahrenheit (storage temperature 14 - 140 degrees Fahrenheit)
  • 6 ft. drop and 150 lb. crush rated
  • Includes test leads and operating instructions
  • UL approved and CE listed
