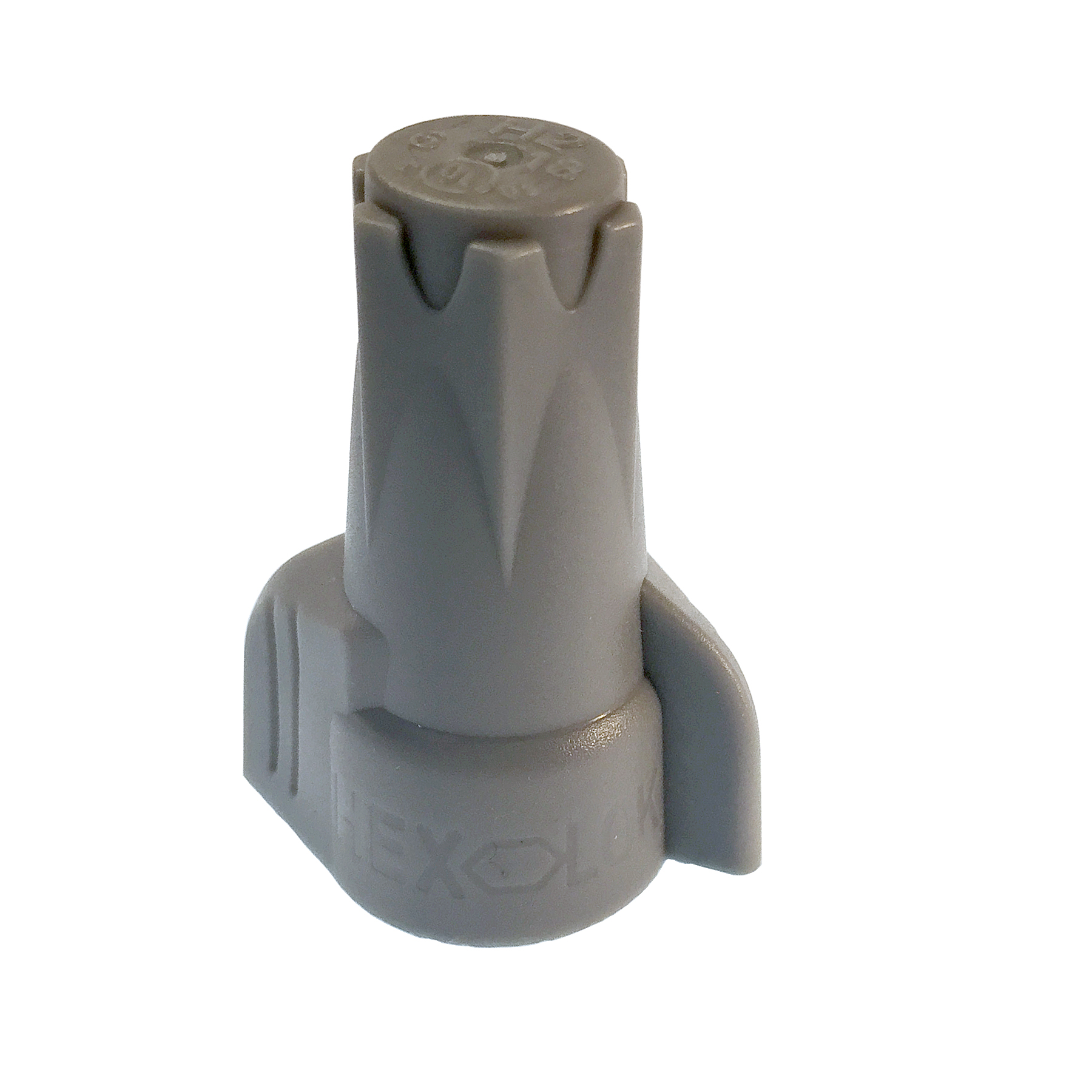

Product image for ILS 19-2H2 Hex-Lok Grey H2 3/Cd
Image thumbnail 0
Image thumbnail 1

To:
CC:

ILS 19-2H2 Hex-Lok Grey H2 3/Cd

Manufacturer: Gardner Bender | Catalog # 19-2H2 | QED Part # 1926576

$5.94 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
These multi-range hex-head connectors cover 95% of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install - you can't over-torque this connector because it's patented hex-head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Large appliances, Timers, Indoor lighting, Switches, Ballasts, Junction Box, Air conditioners

Manufacturer Information

Brand
Gardner Bender

General Product Info

12-Digit UPC
032076024758
Product UPC
03207602475

Dimensions

Height
1.328 Inch
Length
1 Inch
Width
.438 in
Overview
  • Hex head design allows for automatic or manual installation without stress distortion
  • Patented design can't be over-torqued, strips out at UL torque
  • 5/16\" or 7/16\" hex driver installation option
  • Streamlined design for compact installations
  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only
