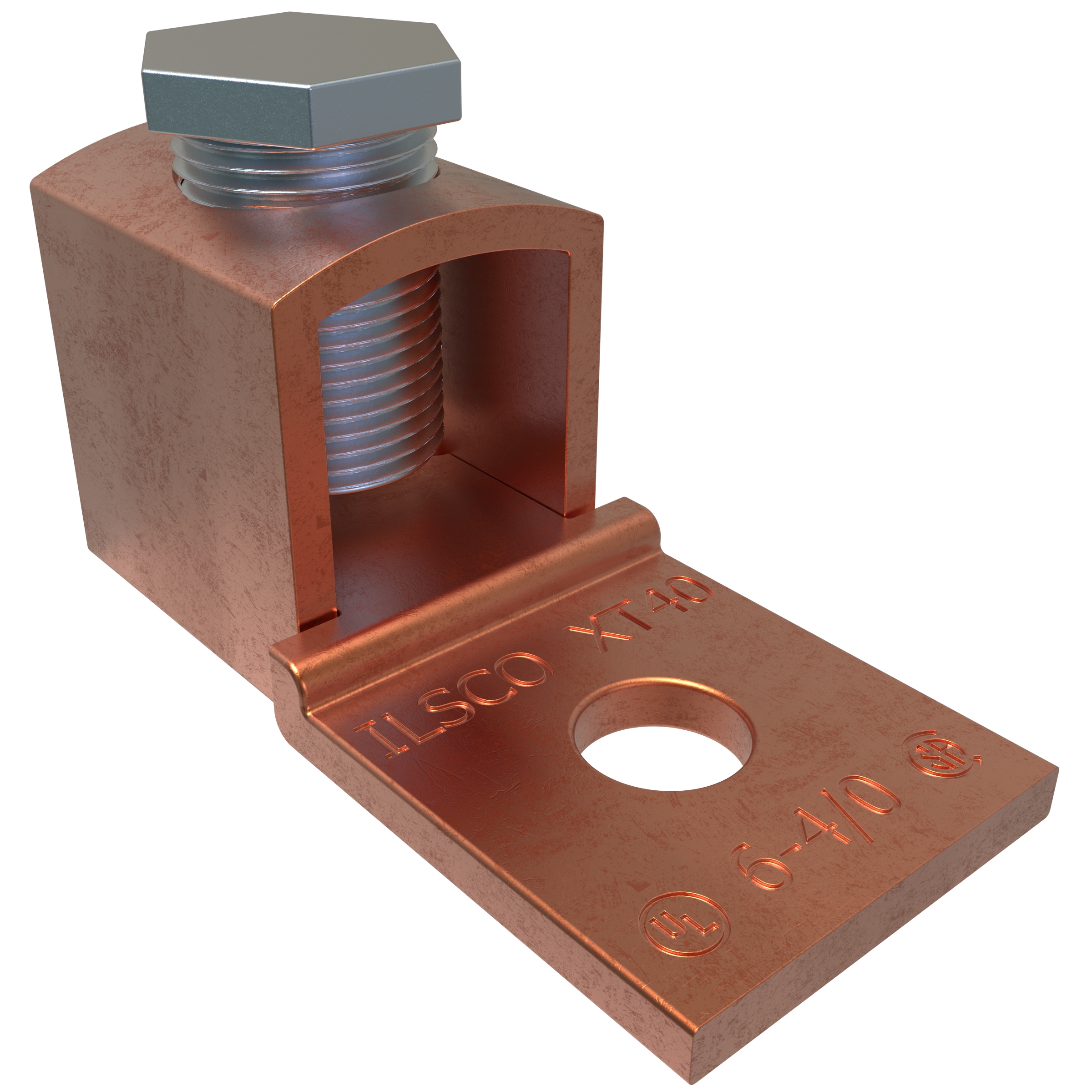

Product image for ILSCO XT-40 2 to 4/0 AWG 5/16 Inch Stud Copper 1-Conductor 1-Hole Mechanical Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ILSCO XT-40 2 to 4/0 AWG 5/16 Inch Stud Copper 1-Conductor 1-Hole Mechanical Lug

Manufacturer: Ilsco | Catalog # XT-40 | QED Part # 1552395
$59.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/8 External Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Bolt Size
5/16 in
Conductor Material
Copper
Conductor Size
6-4/0 AWG
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.344 in
Number of Conductors
1
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Tongue Type
Straight
Type
Straight Tongue
Voltage
35 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669959239
Color
Copper
Finish
Electrolytic
Product UPC
78366995923
Weight
0.247 lb

Dimensions

Height
1.186 Inch
Length
2.188 Inch
Width
1 in

Certifications and Compliance

Country of Origin
India
